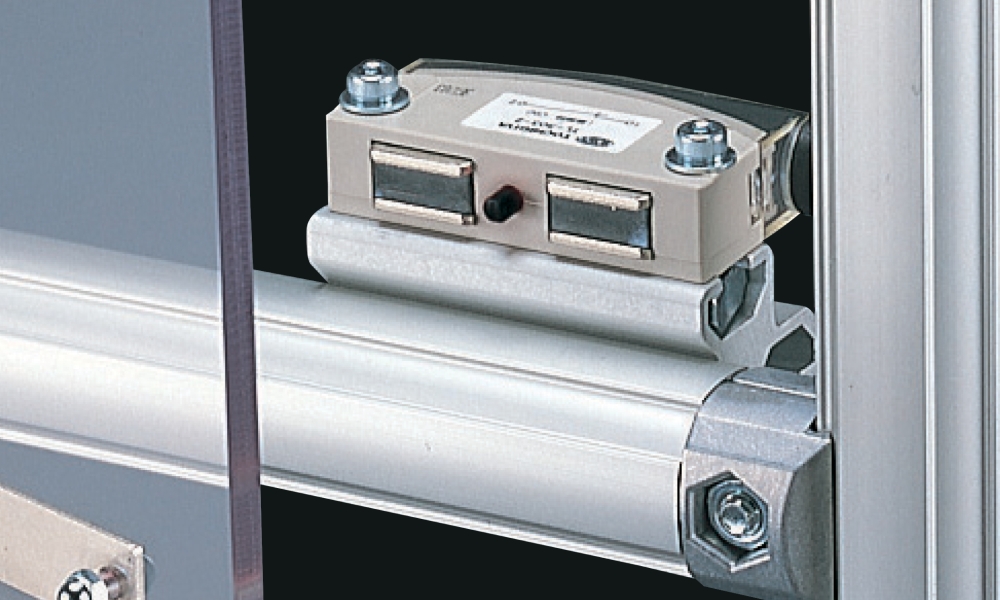

Catch for Panel Door with Switch

Product Type

Item No. : GFQ-000

STP SOLID DXF

Technical Data >>

Name: Catch for Panel Door with Switch
L (mm): -
Material: Install area : Aluminum Extrude
Magnet : Ferrite
Housing : PBT
Geometrical Moment of Inertia: -
Section Modulus: Product included
Connector Piece Lx1
Part Holder L66x1
Magnet Catch Limitx1
T Nut S (M6)x1
T Nut S (M4)x2
Small Cross Recessed Flat Head Screw M3x10 x2
Hexagon Socket Head Cap Screw M4x22 x2
Flat Washer M4x2
Hexagon Cap Nut M3x2
Hexagon Socket Low Head Cap Screw M6x12 x1
Mass Unit: 143 g
Environment: RoHS6 Compliant

- Installation kit including magnet catch switch for Resin Door Panel
- Magnet suction force 29.4 N
- Switch Spec : when the door shut ON
