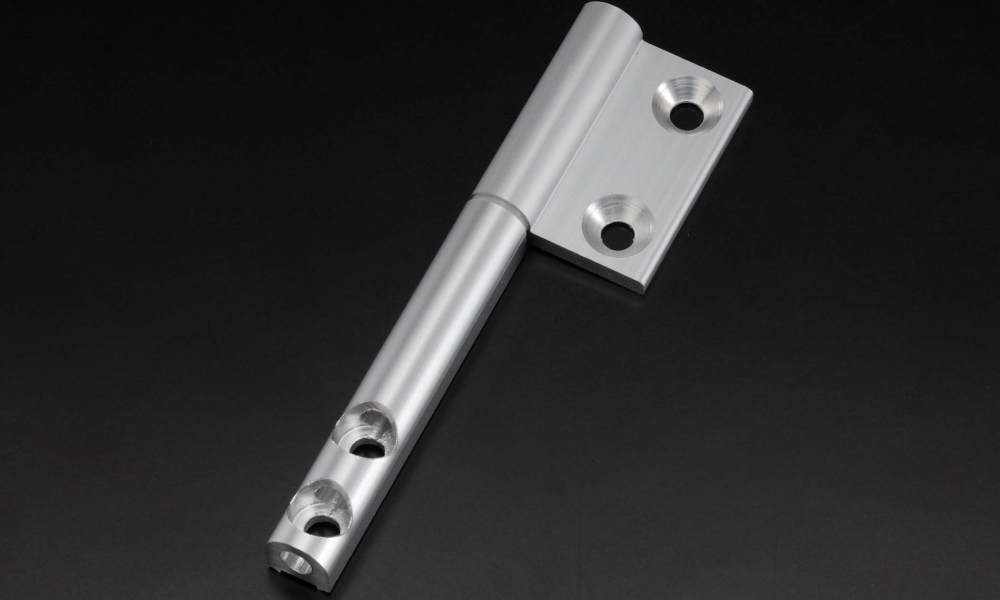

ZF Hinge L/R (for ZF Frame Inside)

Product Type

ZF Hinge L (for ZF Frame Inside) 60
Item No. : ZFA-045
STP SOLID DXF
Name
ZF Hinge L (for ZF Frame Inside) 60
L (mm)
-
Material
Extruded Aluminum
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Weight 39.5 g
Load Capacity 49N/Piece
Environment
RoHS10 Compliant
Usable Frame: ZF60
ZF Hinge R (for ZF Frame Inside) 60
Item No. : ZFA-046
STP SOLID DXF
Name
ZF Hinge R (for ZF Frame Inside) 60
L (mm)
-
Material
Extruded Aluminum
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Weight 39.5 g
Load Capacity 49N/Piece
Environment
RoHS10 Compliant
Usable Frame: ZF60
ZF Hinge L (for ZF Frame Inside) 80.100
Item No. : ZFA-04B
STP SOLID DXF
Name
ZF Hinge L (for ZF Frame Inside) 80.100
L (mm)
-
Material
Extruded Aluminum
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Weight 39.4 g
Load Capacity 49N/Piece
Environment
RoHS10 Compliant
Usable Frame: ZF100 / 80
ZF Hinge R (for ZF Frame Inside) 80.100
Item No. : ZFA-04C
STP SOLID DXF
Name
ZF Hinge R (for ZF Frame Inside) 80.100
L (mm)
-
Material
Extruded Aluminum
Geometrical Moment of Inertia
-
Section Modulus
-
Mass Unit
Weight 39.4 g
Load Capacity 49N/Piece
Environment
RoHS10 Compliant
Usable Frame: ZF100 / 80
ZF Hinge L (for ZF Frame Inside) 60 Kit
Item No. : ZFK-045
STP SOLID DXF
Name
ZF Hinge L (for ZF Frame Inside) 60 Kit
L (mm)
-
Material
Extruded Aluminum
Bolt, Nut : Iron
Aluminum Plate Nut : Aluminum
Geometrical Moment of Inertia
-
Section Modulus
Kit Contents
ZF Hinge for L Panel x 1pc
Cross-recessed Flat Head Bolt (M5 x 15) x 2pcs
Hexagon Socket Head Cap Screw (M5×10) ×2pcs
ZF Nut (M5) x 2pcs
Aluminum Plate Nut for Fat Hinge SS x 1pcs
Mass Unit
Weight 60.4 g
Load Capacity 49N/Piece
Environment
RoHS10 Compliant
Usable Frame: ZF60
ZF Hinge R (for ZF Frame Inside) 60 Kit
Item No. : ZFK-046
STP SOLID DXF
Name
ZF Hinge R (for ZF Frame Inside) 60 Kit
L (mm)
-
Material
Extruded Aluminum
Bolt, Nut : Iron
Aluminum Plate Nut : Aluminum
Geometrical Moment of Inertia
-
Section Modulus
Kit Contents
ZF Hinge for R Panel x 1pc
Cross-recessed Flat Head Bolt (M5 x 15) x 2pcs
Hexagon Socket Head Cap Screw (M5×10) ×2pcs
ZF Nut (M5) x 2pcs
Aluminum Plate Nut for Fat Hinge SS x 1pc
Mass Unit
Weight 60.4 g
Load Capacity 49N/Piece
Environment
RoHS10 Compliant
Usable Frame: ZF60
ZF Hinge L (for ZF Frame Inside) 80.100 Kit
Item No. : ZFK-04B
STP SOLID DXF
Name
ZF Hinge L (for ZF Frame Inside) 80.100 Kit
L (mm)
-
Material
Extruded Aluminum
Bolt, Nut : Iron
Aluminum Plate Nut : Aluminum
Geometrical Moment of Inertia
-
Section Modulus
Kit Contents
ZF Hinge for L Panel x 1pc
Cross-recessed Fat Head Bolt (M5 x 15) x 2pcs
Hexagon Socket Head Cap Screw (M5×10) ×2pcs
ZF Nut (M5) x 2pcs
Aluminum Plate Nut for Flat Hinge SS x 1pc
Mass Unit
Weight 60.3 g
Load Capacity 49N/Piece
Environment
RoHS10 Compliant
Usable Frame: ZF100 / 80
ZF Hinge R (for ZF Frame Inside) 80.100 Kit
Item No. : ZFK-04C
STP SOLID DXF
Name
ZF Hinge R (for ZF Frame Inside) 80.100 Kit
L (mm)
-
Material
Extruded Aluminum
Bolt, Nut : Iron
Aluminum Plate Nut : Aluminum
Geometrical Moment of Inertia
-
Section Modulus
Kit Contents
ZF Hinge for R Panel x 1pc
Cross-recessed Fat Head Bolt (M5 x 15) x 2pcs
Hexagon Socket Head Cap Screw (M5×10) ×2pcs
ZF Nut (M5) x 2pcs
Aluminum Plate Nut for Flat Hinge SS x 1pc
Mass Unit
Weight 60.3 g
Load Capacity 49N/Piece
Environment
RoHS10 Compliant
Usable Frame: ZF100/ 80

Detail Product Other

The door can be installed to inside of the stand frame.
