Green Frame

Product Type

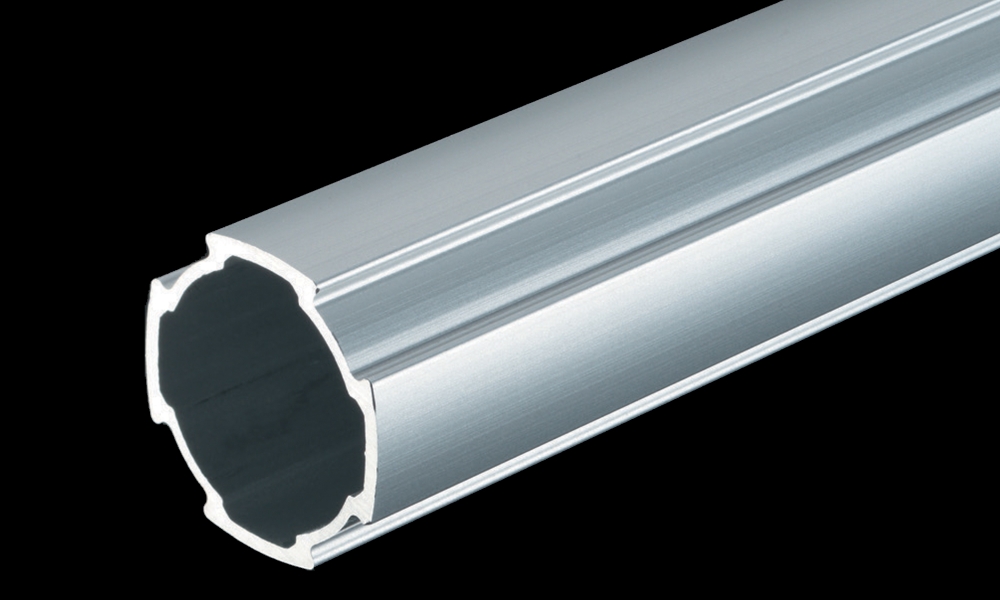

Green Frame L=100~4000 mm

Item No. : GFF-000

STP SOLID DXF

Technical Data >>

Name: Green Frame L=100~4000 mm
L (mm): -
Material: Aluminum Extrude
Alumite Treatment
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=1.16 x 104 mm4
ly=1.16 x 104 mm4
Section Coefficient
Zx=0.83 x 103 mm3
Zy=0.83 x 103 mm3
Mass Unit: Color Silver
Weight 0.37 kg/m
Environment: RoHS10 Compliant

Green Frame L=4000 mmx5 pcs.

Item No. : GFK-F00

STP SOLID DXF

Technical Data >>

Name: Green Frame L=4000 mmx5 pcs.
L (mm): -
Material: Aluminum Extrude
Alumite Treatment
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=1.16 x 104 mm4
ly=1.16 x 104 mm4
Section Coefficient
Zx=0.83 x 103 mm3
Zy=0.83 x 103 mm3
Mass Unit: Color Silver
Weight 0.37 kg/m
Environment: RoHS10 Compliant

Green Frame L=1000 mmx5 pcs.

Item No. : GFK-F02

STP SOLID DXF

Technical Data >>

Name: Green Frame L=1000 mmx5 pcs.
L (mm): -
Material: Aluminum Extrude
Alumite Treatment
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=1.16 x 104 mm4
ly=1.16 x 104 mm4
Section Coefficient
Zx=0.83 x 103 mm3
Zy=0.83 x 103 mm3
Mass Unit: Color Silver
Weight 0.37 kg/m
Environment: RoHS10 Compliant

Green Frame L=2000 mmx5 pcs.

Item No. : GFK-F04

STP SOLID DXF

Technical Data >>

Name: Green Frame L=2000 mmx5 pcs.
L (mm): Aluminum Extrude
Alumite Treatment
Material: Silver
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=1.16 x 104 mm4
ly=1.16 x 104 mm4
Section Coefficient
Zx=0.83 x 103 mm3
Zy=0.83 x 103 mm3
Mass Unit: Weight0.37 kg/m
0.37 kg/m
Environment: RoHS10 Compliant

Green Frame L=3000 mmx5 pcs.

Item No. : GFK-F06

STP SOLID DXF

Technical Data >>

Name: Green Frame L=3000 mmx5 pcs.
L (mm): Aluminum Extrude
Alumite Treatment
Material: Silver
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=1.16 x 104 mm4
ly=1.16 x 104 mm4
Section Coefficient
Zx=0.83 x 103 mm3
Zy=0.83 x 103 mm3
Mass Unit: Weight 0.37 kg/m
Environment: RoHS10 Compliant
