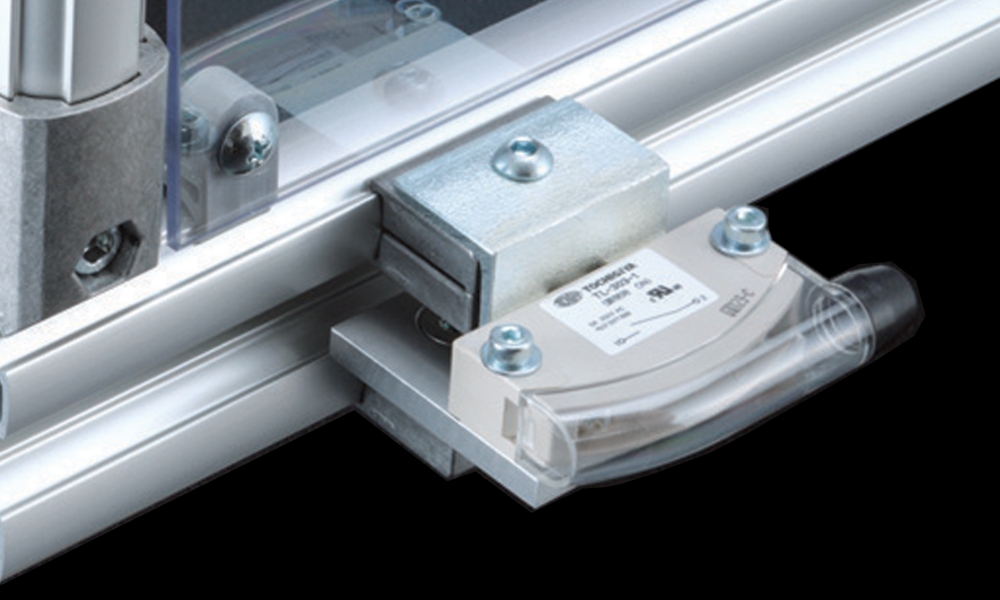

Catch for Frame with Switch

Product Type

Item No. : GFQ-004

STP SOLID DXF

Technical Data >>

Name: Catch for Frame with Switch
L (mm): -
Material: Install area: Aluminum Extrude
Magnet: Ferrite
Housing: PBT
Washer/Bolt/Nut: Steel
Geometrical Moment of Inertia: -
Section Modulus: Product Included：
Connector Piece L x 4
Limit Plate L x 1
Catch Piece L x 1
Magnet Catch with Limit x 1
Hexagon Socket Bolt (M4x22) x 2
Cross Recessed Flat Head Screw (M6x20) x 2
Hexagon Socket Button Bolt (M6x20) x 1
Flash Washer M4 x 2
Hexagon Nut M6 (1 Type) x 3
Hexagon Nut M6 (3 Type) x 1
Hexagon Socket Head Bolt (M6x12) x 1
Mass Unit: 195 g
EnvironmentRoHS: RoHS Compliant

- Installation Kit including magnet catch switch for Door Frame
- Magnet suction force 29.4 N
- Switch Spec : when the door shut ON
