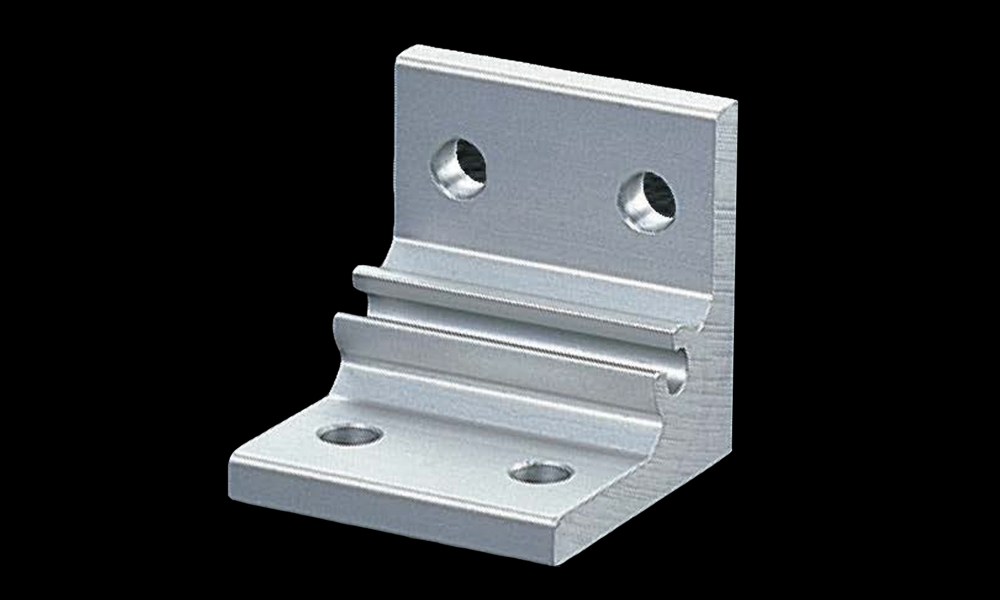

Hard Bracket SS2040

Product Type

Hard Bracket SS 2040

Item No. : SFJ-N02

STP SOLID DXF

Technical Data >>

Name: Hard Bracket SS 2040
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
Perpendicular surface is machining finished.
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: 36 g
Environment: RoHS Compliant
Green Procurement

Hard Bracket SS 2040 With Tap

Item No. : SFJ-N02T

STP SOLID DXF

Technical Data >>

Name: Hard Bracket SS 2040 With Tap
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
Perpendicular surface is machining finished.
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: 37 g
Environment: RoHS Compliant
Green Procurement

Hard Bracket SS 2040 Kit

Item No. : SFK-N02

STP SOLID DXF

Technical Data >>

Name: Hard Bracket SS 2040 Kit
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
Perpendicular surface is machining finished.
Geometrical Moment of Inertia: -
Section Modulus: Hard Bracket SS 2040 x1
Hexagon Socket Bolt (M5X10) x4
T Nut SS (M5) x4
Mass Unit: 36 g
Environment: RoHS Compliant
Green Procurement

Hard Bracket SS 2040 With Tap Kit (Stainless)

Item No. : SFK-N02P

STP SOLID DXF

Technical Data >>

Name: Hard Bracket SS 2040 With Tap Kit (Stainless)
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
Perpendicular surface is machining finished.
Bolt and Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Hard Bracket SS 2040 x1
Hexagon Socket Bolt (M5X10) x4
T Nut SS (M5) x4
Mass Unit: 36 g
Environment: RoHS Compliant
Green Procurement

Hard Bracket SS 2040 Kit (Stainless)

Item No. : SFK-N02S

STP SOLID DXF

Technical Data >>

Name: Hard Bracket SS 2040 Kit (Stainless)
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
Perpendicular surface is machining finished.
Bolt and Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Hard Bracket SS 2040 x1
Hexagon Socket Bolt (M5X10) x4
T Nut SS (M5) x4
Mass Unit: 36 g
Environment: RoHS Compliant
Green Procurement

Hard Bracket SS 2040 With Tap Kit

Item No. : SFK-N02T

STP SOLID DXF

Technical Data >>

Name: Hard Bracket SS 2040 With Tap Kit
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
Perpendicular surface is machining finished.
Geometrical Moment of Inertia: -
Section Modulus: Hard Bracket SS 2040 x1
Hexagon Socket Bolt (M5X10) x4
T Nut SS (M5) x4
Mass Unit: 36 g
Environment: RoHS Compliant
Green Procurement

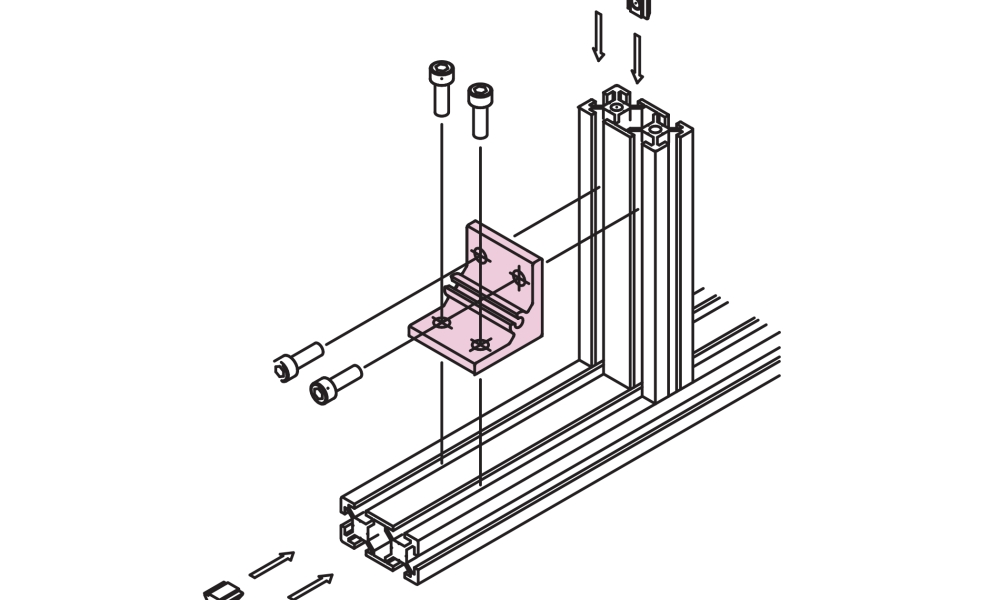

Usable Frame: SF-20٠40/ SF-40٠40٠2S/ SF-40٠60٠SS/ SF-20٠40٠40 (1F)
