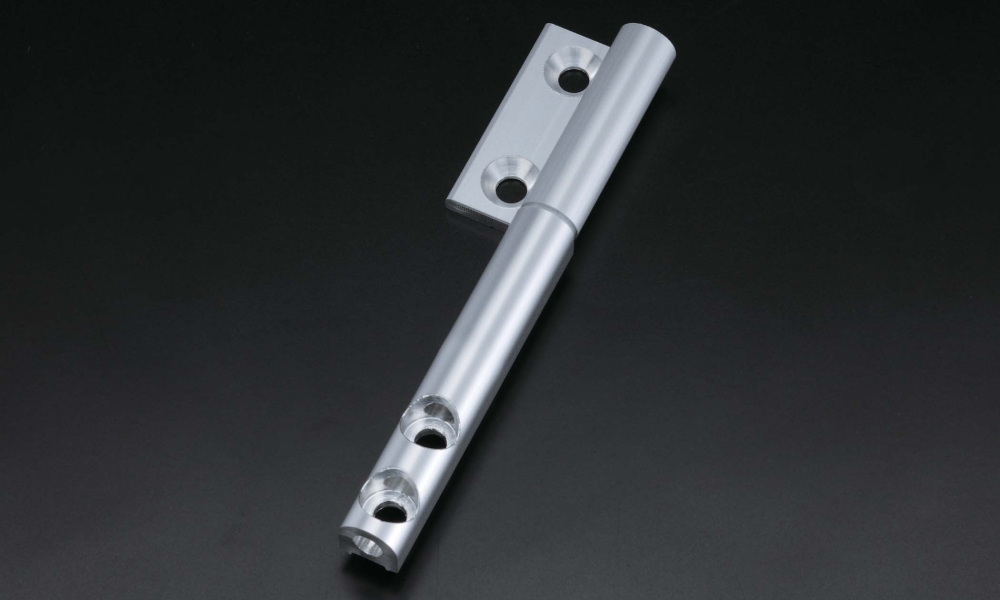

ZF Hinge L/R (for ZF Frame Outside)

Product Type

Hinge L (for ZF Frame Outside) 60.80.100

Item No. : ZFA-048

STP SOLID DXF

Technical Data >>

ZF Hinge R (for ZF Frame Outside) 60.80.100

Item No. : ZFA-049

STP SOLID DXF

Technical Data >>

ZF Hinge L (for ZF Frame Outside) 60.80.100 Kit

Item No. : ZFK-048

STP SOLID DXF

Technical Data >>

Name: ZF Hinge L (for ZF Frame Outside) 60.80.100 Kit
L (mm): -
Material: Extruded Aluminum
Bolt, Nut : Iron
Aluminum Plate Nut : Aluminum
Geometrical Moment of Inertia: -
Section Modulus: ZF Hinge L (for ZF Frame Outside) x 1pc
Cross-recessed Fat Head Bolt (M5 x 15) x 2pcs
Hexagon Socket Head Cap Screw (M5×10) ×2pcs
Aluminum Plate Nut for Fat Hinge SS x 1pc
ZF Nut (M5) x 2pcs
Mass Unit: Weight 60.3 g
Load Capacity 49N/Piece
Environment: RoHS10 Compliant
Usable Frame: ZF100 / 80 / 60

ZF Hinge R (for ZF Frame Outside) 60.80.100 Kit

Item No. : ZFK-049

STP SOLID DXF

Technical Data >>

Name: ZF Hinge R (for ZF Frame Outside) 60.80.100 Kit
L (mm): -
Material: Extruded Aluminum
Bolt, Nut : Iron
Aluminum Plate Nut : Aluminum
Geometrical Moment of Inertia: -
Section Modulus: ZF Hinge R (for ZF Frame Outside) x 1pc
Cross-recessed Fat Head Bolt (M5 x 15) x 2pcs
Hexagon Socket Head Cap Screw (M5×10) ×2pcs
Aluminum Plate Nut for Fat Hinge SS x 1pc
ZF Nut (M5) x 2pcs
Mass Unit: Weight 60.3 g
Load Capacity 49N/Piece
Environment: RoHS10 Compliant
Usable Frame: ZF100 / 80 / 60

The door can be installed to outside of the stand frame.

Common use for ZF100 / 80 / 60.
