GF-SF Connector Long

Product Type

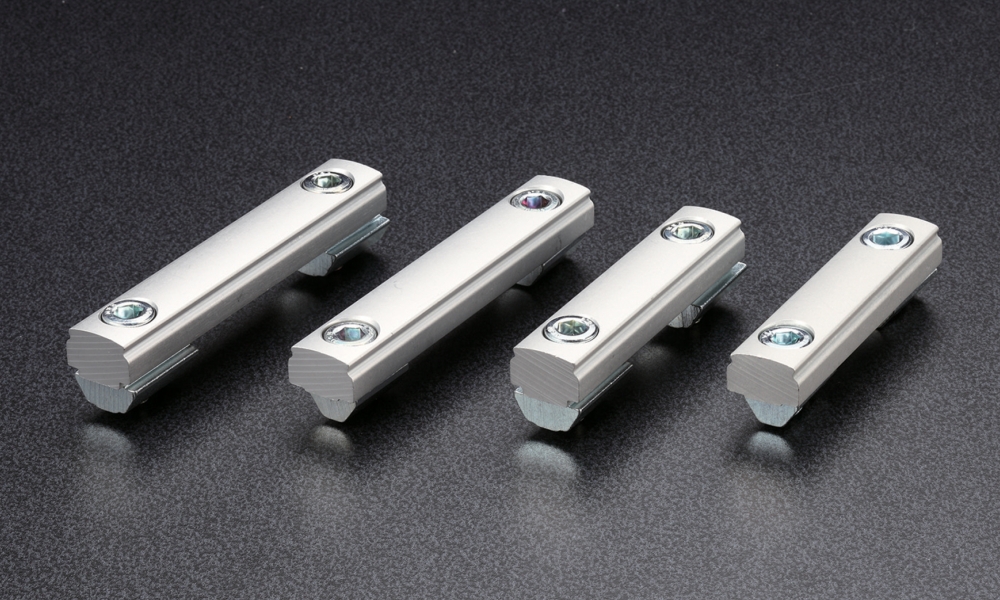

GF-SF Connector S Slot Long Kit

Item No. : GFA-615

STP SOLID DXF

Technical Data >>

Name: GF-SF Connector S Slot Long Kit
L (mm): -
Material: Aluminium Diecast
Bolt, Nut : Steel
Geometrical Moment of Inertia: -
Section Modulus: Kit Contents
GF-SF Connector S Slot x1
Hexagon Socket Head Cap (M6x10) x1
Easy Nut S (M6) x1
**For Frame: GF N series (size 28 mm) and SF-30 series (Groove width 8 mm)
Mass Unit: 41 g
Environment: RoHS10 Compliant

GF-SF Connector S Slot Long G Kit

Item No. : GFA-617

STP SOLID DXF

Technical Data >>

Name: GF-SF Connector S Slot Long G Kit
L (mm): -
Material: Aluminium Diecast
Bolt, Nut : Steel
Geometrical Moment of Inertia: -
Section Modulus: Kit Contents
GF-SF Connector S lot G x1
Hexagon Socket Head Cap (M6x10) x2
Easy Nut S (M6) x2
**For Frame: GF G series (size 43 mm) and SF-30 series (Groove width 8 mm)
Mass Unit: 47 g
Environment: RoHS10 Compliant

Detail Product Other

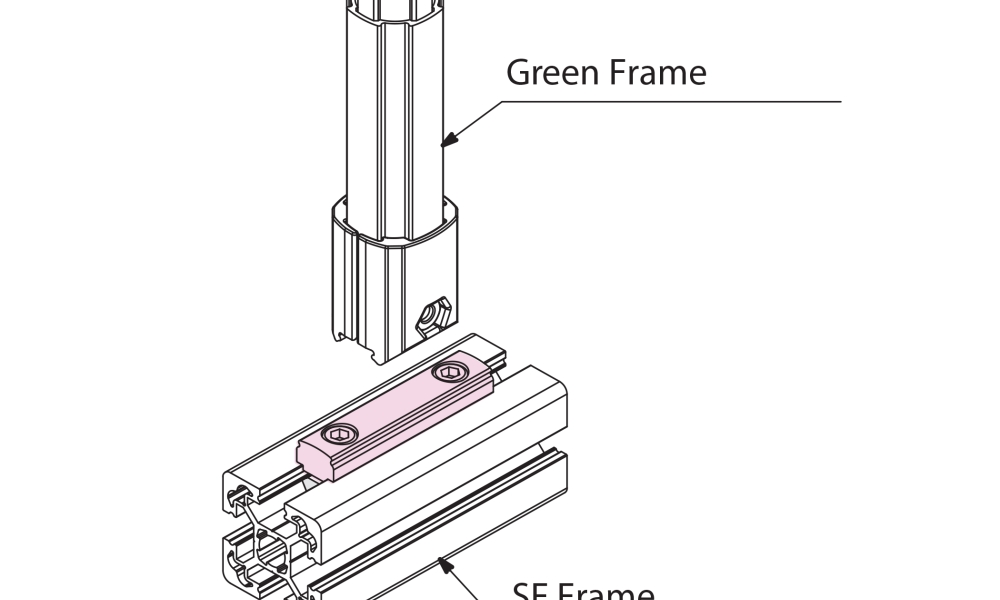

For connecting GF and SF and can adjust GF position on SF after fixing the GF connector
