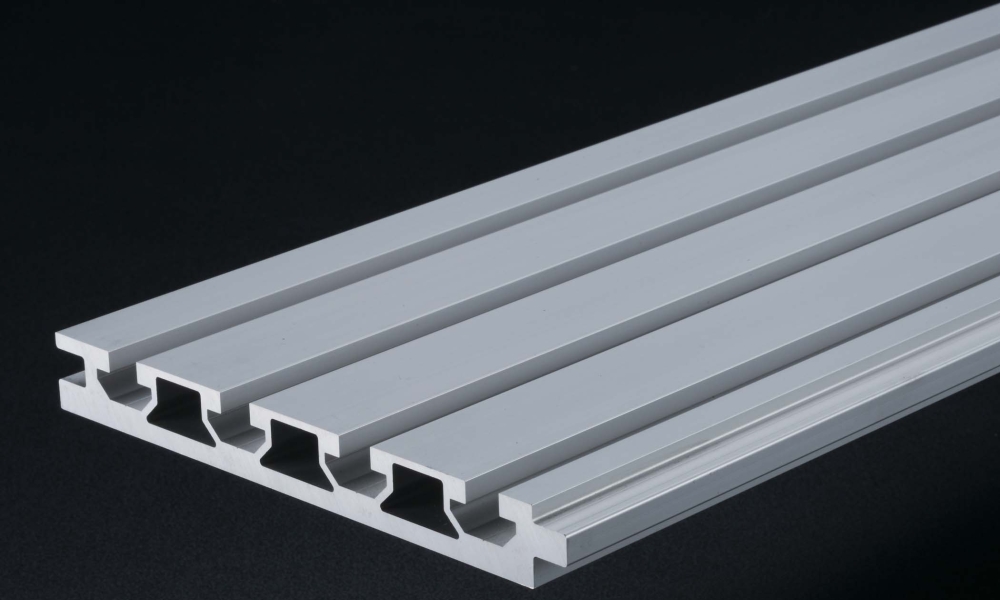

ZF Base Frame

Product Type

ZF Base Frame L=4000

Item No. : ZFF-002

STP SOLID DXF

Technical Data >>

Name: ZF Base Frame L=4000
L (mm): 4000 mm
Material: A6N01SS-T5
Alumite Treatment
Geometrical Moment of Inertia: Ix＝7.58×104mm4
Iy=463.93×104mm4
Section Modulus: Zx=6.51×103mm3
Zy=53.48×103mm3
Mass Unit: 4.76 Kg/m
Resistance value guide: 109-10Ω (antistatic level)
Environment: RoHS10 Compliant

ZF Base Frame L=50～4000

Item No. : ZFF-004

STP SOLID DXF

Technical Data >>

Name: ZF Base Frame L=50～4000
L (mm): 50～4000 mm
Material: A6N01SS-T5
Alumite Treatment
Geometrical Moment of Inertia: Ix＝7.58×104mm4
Iy=463.93×104mm4
Section Modulus: Zx=6.51×103mm3
Zy=53.48×103mm3
Mass Unit: 4.76 Kg/m
Resistance value guide: 109-10Ω (antistatic level)
Environment: RoHS10 Compliant

Detail Product Other

Usable series: ZF Base Frame / SF Frame
