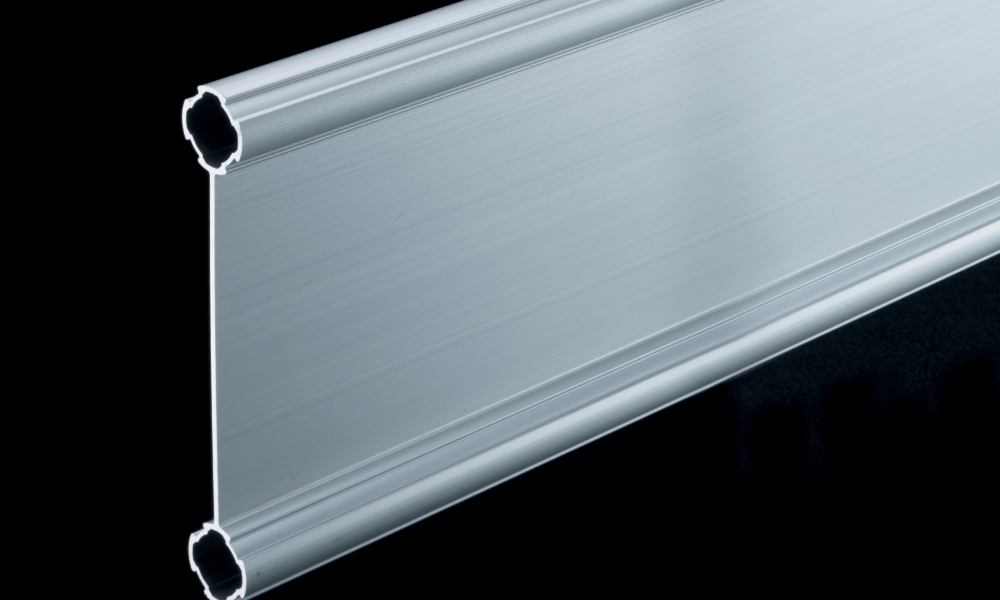

Green Frame S P100

Product Type

Green Frame S P100 L=100~4000 mm

Item No. : GFF-405

STP SOLID DXF

Technical Data >>

Name: Green Frame S P100 L=100~4000 mm
L (mm): Aluminum Extrude
Material: -
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=44.58 x 104 mm4
ly=0.53 x 104 mm4
Section Coefficient
Zx=7.49 x 103 mm3
Zy=0.56 x 103 mm3
Mass Unit: -
Environment: RoHS Compliant

Detail Product Other

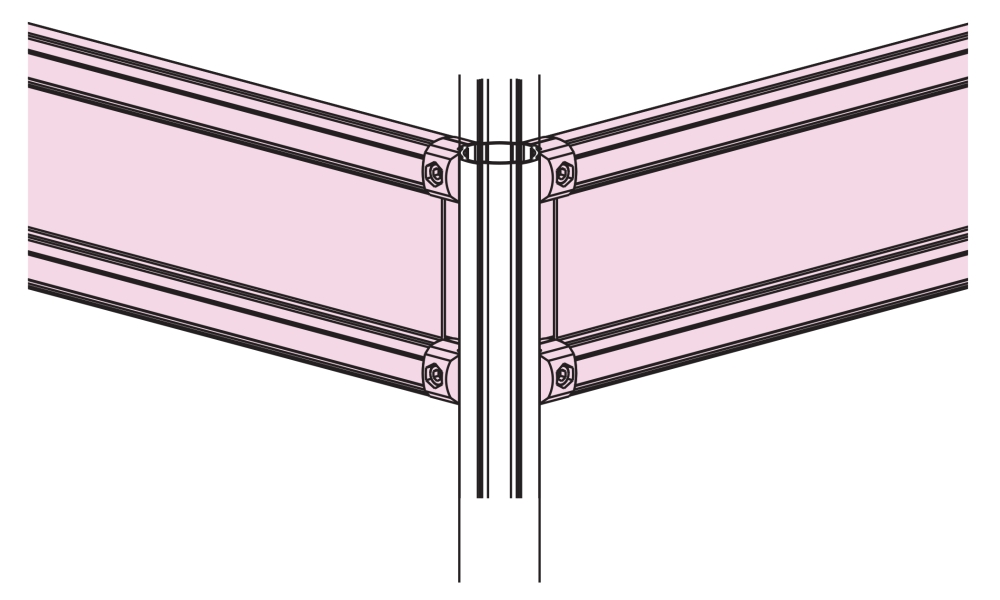

- Added as a partition or for more reinforcement
- Compatible Frame Cap:) Inner Cap S (GFA-403)
