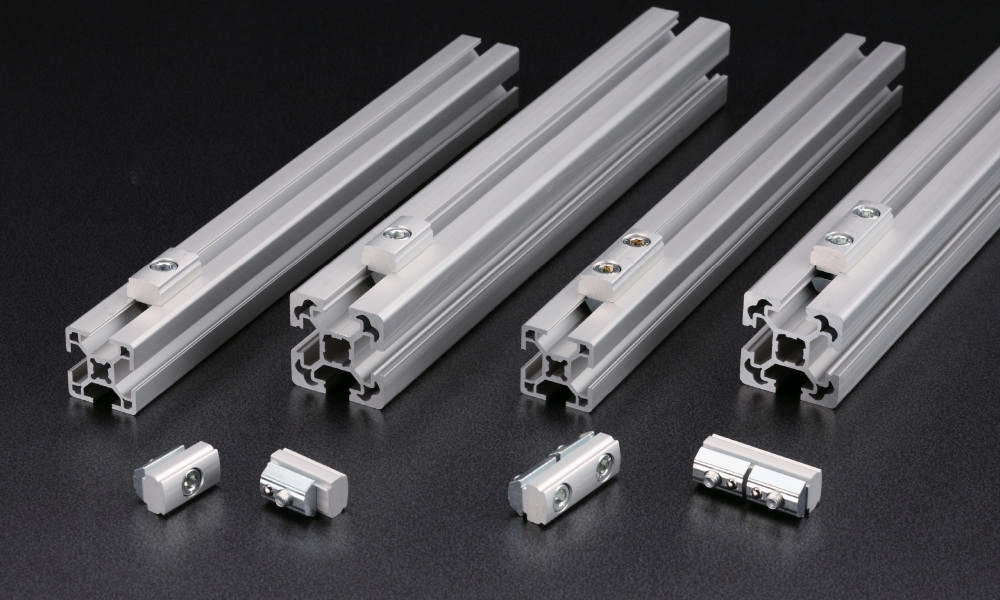

GF-SF Connector

Product Type

GF-SF Connector S Slot Kit

Item No. : GFA-603

STP SOLID DXF

Technical Data >>

Name: GF-SF Connector S Slot Kit
L (mm): -
Material: Aluminum Extrude
Geometrical Moment of Inertia: -
Section Modulus: Kit Contents
GF-SF Connector S Slot x1
Hexagon Socket Head Cap (M6x10) x1
Easy Nut S (M6)x1
**For Frame: GF-N series (size 28 mm) and SF-30 series (Groove width 8 mm)
Mass Unit: 9 g
Environment: RoHS10 Compliant

GF-SF Connector S Slot G Kit

Item No. : GFA-605

STP SOLID DXF

Technical Data >>

Name: GF-SF Connector S Slot G Kit
L (mm): -
Material: Aluminum Extrude
Geometrical Moment of Inertia: -
Section Modulus: Kit Contents
GF-SF Connector S Slot G x1
Hexagon Socket Head Cap (M6x10) x2
Easy Nut S (M6)x2
**For Frame: GF-G series (size 43 mm) and SF-30 series (Groove width 8 mm)
Mass Unit: 33 g
Environment: RoHS10 Compliant

Detail Product Other

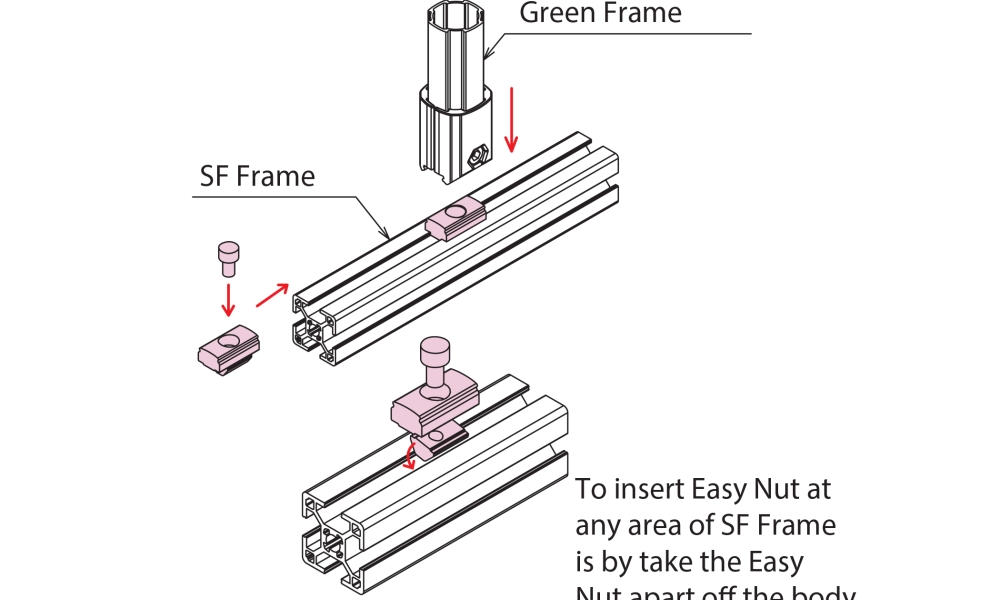

Use to connect Green Frame and SF Frame (Aluminum Structural Corner Type)
