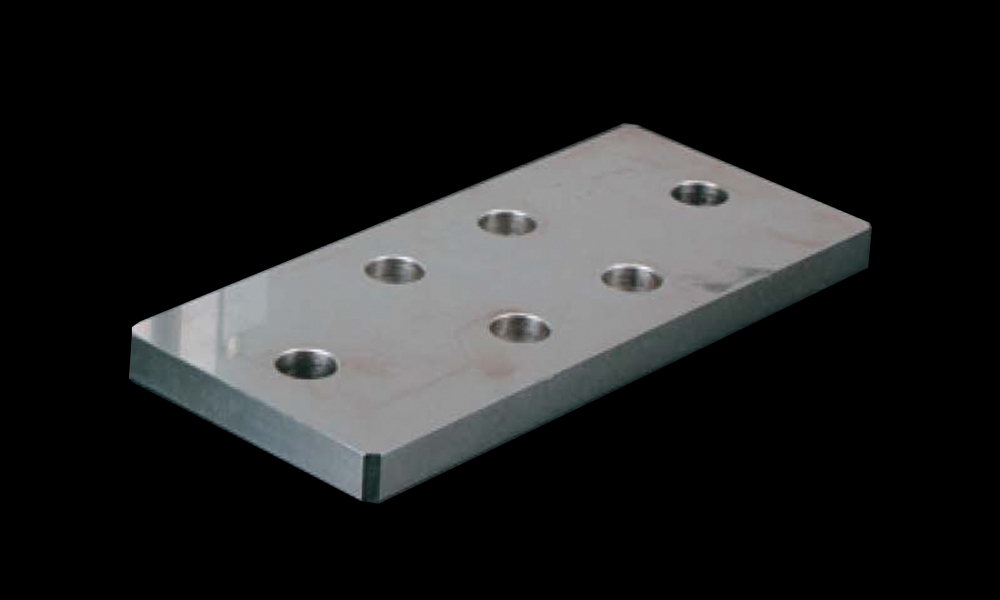

Anchor Plate

Product Type

Anchor Plate 4080

Item No. : SFK-75A

STP SOLID DXF

Technical Data >>

Name: Anchor Plate 4080
L (mm): -
Material: SUS304
Geometrical Moment of Inertia: -
Section Modulus: Product included
Hexagon Socket Bolts (M12 x 35) Stainless x 4
Mass Unit: 1049 g
Environment: RoHS Compliant
Green Procurement

Anchor Plate 4590

Item No. : SFK-76A

STP SOLID DXF

Technical Data >>

Name: Anchor Plate 4590
L (mm): -
Material: SUS304
Geometrical Moment of Inertia: -
Section Modulus: Product included
Hexagon Socket Bolts (M12 x 35 ) Stainless x 4
Mass Unit: 1224 g
Environment: RoHS Compliant
Green Procurement

Anchor Plate 8080

Item No. : SFK-77A

STP SOLID DXF

Technical Data >>

Name: Anchor Plate 8080
L (mm): -
Material: SUS304
Geometrical Moment of Inertia: -
Section Modulus: Product included
Hexagon Socket Bolts (M8 x 25 ) Stainless x 4
Mass Unit: 1345 g
Environment: RoHS Compliant
Green Procurement

Anchor Plate 9090

Item No. : SFK-78A

STP SOLID DXF

Technical Data >>

Name: Anchor Plate 9090
L (mm): -
Material: SUS304
Geometrical Moment of Inertia: -
Section Modulus: Product included
Hexagon Socket Bolts (M8 x 25 ) Stainless x 4
Mass Unit: 1601 g
Environment: RoHS Compliant
Green Procurement

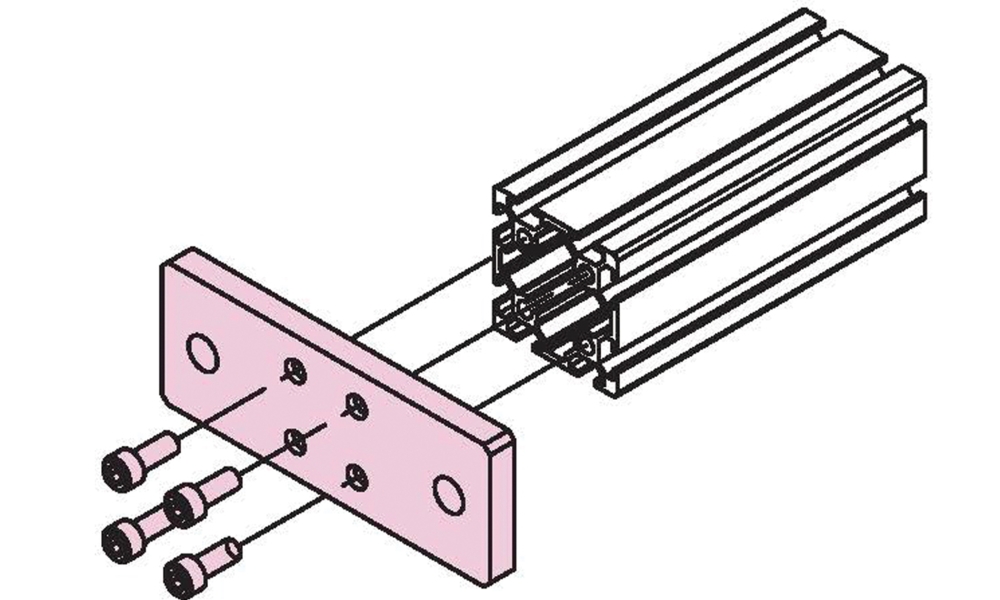

Usable Frame: SF-40·80
