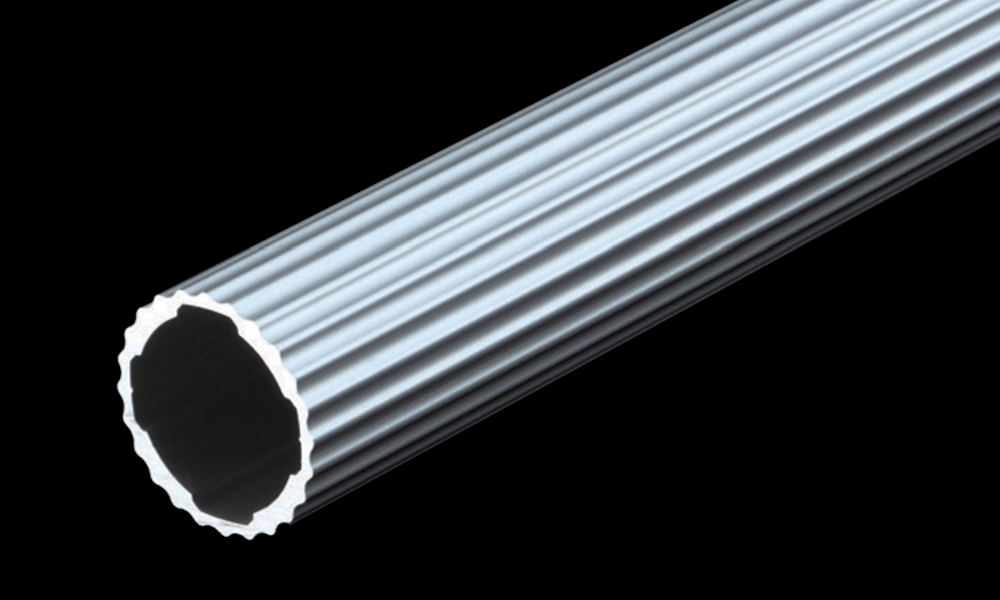

Green Frame Slide

Product Type

Green Frame Slide L=100~4000 mm

Item No. : GFF-006

STP SOLID DXF

Technical Data >>

Name: Green Frame Slide L=100~4000 mm
L (mm): 100 ~ 4000
Material: Aluminum Extrude
Alumite Treatment
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=1.47 x 104 mm4
ly=1.47 x 104 mm4
Section Coefficient
Zx=1.01 x 103 mm3
Zy=1.01 x 103 mm3
Mass Unit: Mass Unit 0.46 /m
Environment: RoHS10 Compliant

Detail Product Other

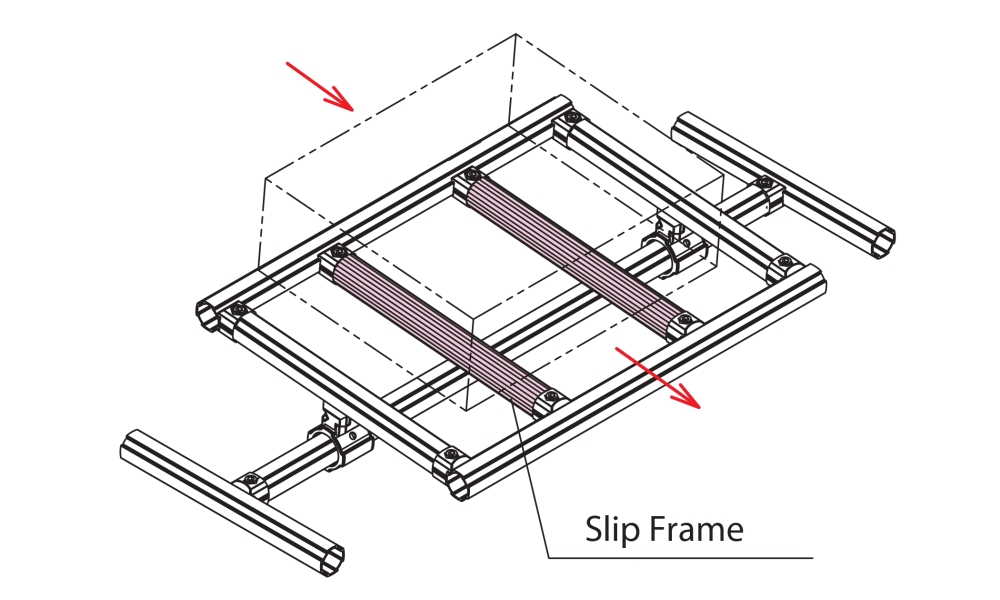

Suitable when prefer to slide work or container on frame
