Green Frame G

Product Type

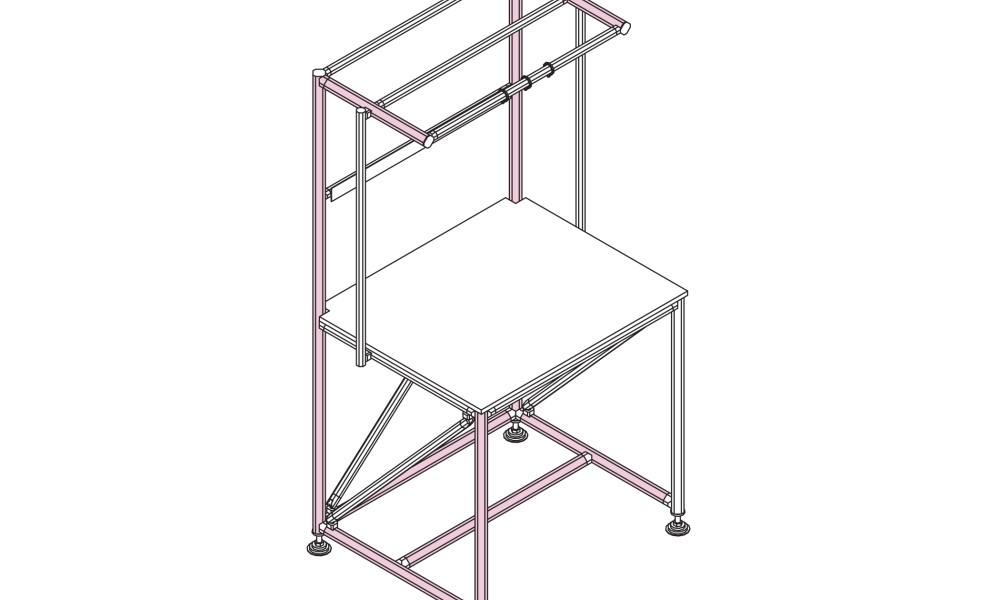

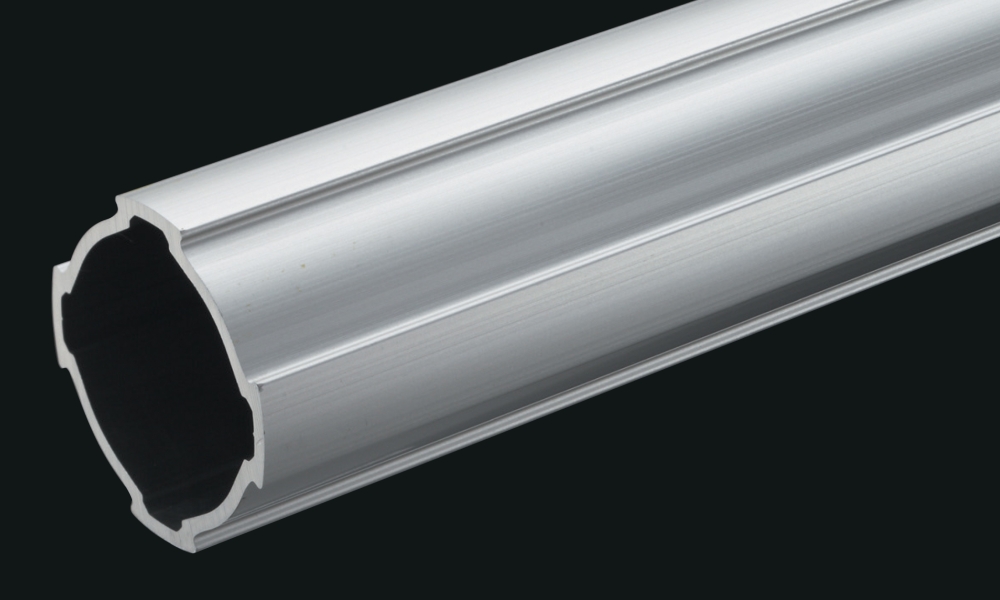

Green Frame G L=100~4000 mm

Item No. : GFF-200

STP SOLID DXF

Technical Data >>

Name: Green Frame G L=100~4000 mm
L (mm): 100 ~ 4000 mm
Material: Aluminum Extrude
Silver : Alumite Treatment
Yellow : Painting (munsell 2.5 Y 8/3 Substantially)
Geometrical Moment of Inertia: -
Section Modulus: lx=5.07 x 104 mm4
ly=5.07 x 104 mm4
Zx=2.36 x 103 mm3
Zy=2.36 x 103 mm3
Mass Unit: Weight 0.74 kg/m
Environment: RoHS10 Compliant

Green Frame G L=4000 mmx3 pcs.

Item No. : GFK-F08

STP SOLID DXF

Technical Data >>

Name: Green Frame G L=4000 mmx3 pcs.
L (mm): 4000 mm x 3pcs.
Material: Aluminum Extrude
Silver : Alumite Treatment
Yellow : Painting (munsell 2.5 Y 8/3 Substantially)
Geometrical Moment of Inertia: -
Section Modulus: lx=5.07 x 104 mm4
ly=5.07 x 104 mm4
Zx=2.36 x 103 mm3
Zy=2.36 x 103 mm3
Mass Unit: Weight 0.74 kg/m
Environment: RoHS10 Compliant

Green Frame G L=3000 mmx3 pcs.

Item No. : GFK-F09

STP SOLID DXF

Technical Data >>

Name: Green Frame G L=3000 mmx3 pcs.
L (mm): 3000 mm x 3pcs.
Material: Aluminum Extrude
Silver : Alumite Treatment
Yellow : Painting (munsell 2.5 Y 8/3 Substantially)
Geometrical Moment of Inertia: -
Section Modulus: lx=5.07 x 104 mm4
ly=5.07 x 104 mm4
Zx=2.36 x 103 mm3
Zy=2.36 x 103 mm3
Mass Unit: Weight 0.74 kg/m
Environment: RoHS10 Compliant

Green Frame G L=2000 mmx3 pcs.

Item No. : GFK-F10

STP SOLID DXF

Technical Data >>

Name: Green Frame G L=2000 mmx3 pcs.
L (mm): 2000 mm x 3 pcs.
Material: Aluminum Extrude
Silver : Alumite Treatment
Yellow : Painting (munsell 2.5 Y 8/3 Substantially)
Geometrical Moment of Inertia: -
Section Modulus: lx=5.07 x 104 mm4
ly=5.07 x 104 mm4
Zx=2.36 x 103 mm3
Zy=2.36 x 103 mm3
Mass Unit: Weight 0.74 kg/m
Environment: RoHS10 Compliant

Green Frame G L=1000 mmx3 pcs.

Item No. : GFK-F11

STP SOLID DXF

Technical Data >>

Name: Green Frame G L=1000 mmx3 pcs.
L (mm): 1000 mm x 3 pcs.
Material: Aluminum Extrude
Silver : Alumite Treatment
Yellow : Painting (munsell 2.5 Y 8/3 Substantially)
Geometrical Moment of Inertia: -
Section Modulus: lx=5.07 x 104 mm4
ly=5.07 x 104 mm4
Zx=2.36 x 103 mm3
Zy=2.36 x 103 mm3
Mass Unit: Weight 0.74 kg/m
Environment: RoHS10 Compliant

- Frame size 43 mm
- Compatible Frame cap: Inner cap G (GFA-402)
