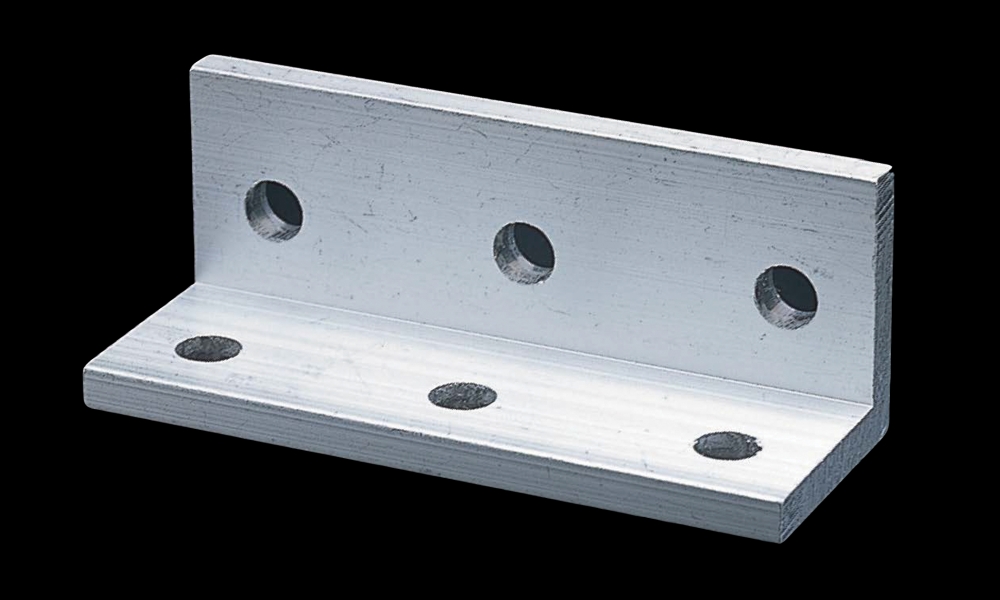

Angle Bracket SS2060

Product Type

Angle Bracket SS 2060

Item No. : SFJ-A09

STP SOLID DXF

Technical Data >>

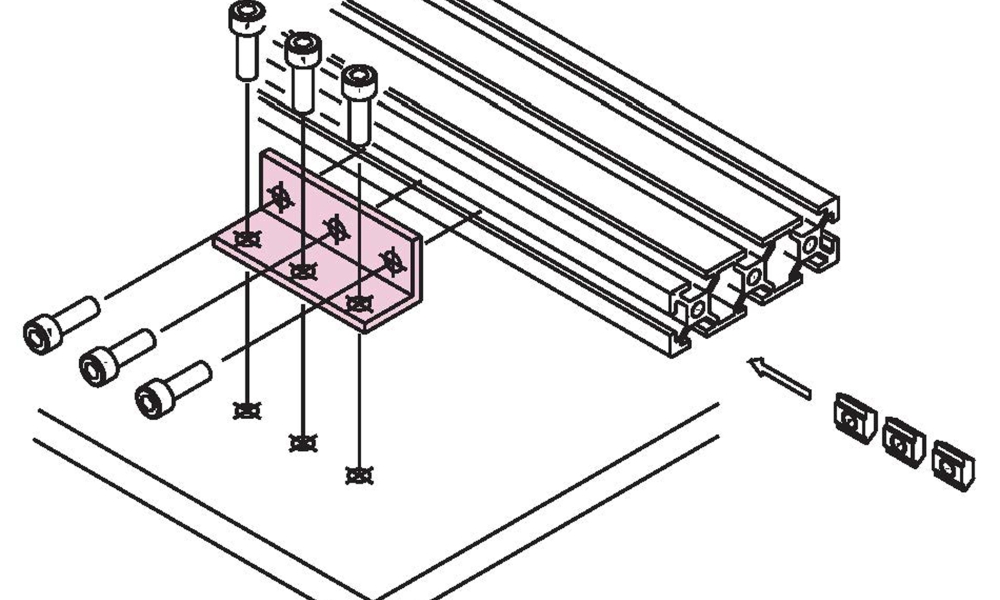

Angle Bracket SS 2060 Kit

Item No. : SFK-A09

STP SOLID DXF

Technical Data >>

Name: Angle Bracket SS 2060 Kit
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
Geometrical Moment of Inertia: -
Section Modulus: Angle Bracket SS2060 x1
Hexagon Socket Bolt (M5x8) x6
T Nut SS (M5) x6
Mass Unit: 15 g
Environment: RoHS Compliant
Green Procurement

Angle Bracket SS2060 (Stainless) Kit

Item No. : SFK-A09S

STP SOLID DXF

Technical Data >>

Name: Angle Bracket SS2060 (Stainless) Kit
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
Bolt and Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Angle Bracket SS2060 x1
Hexagon Socket Bolt (M5x8) x6
T Nut SS (M5) x6
Mass Unit: 15 g
Environment: RoHS Compliant
Green Procurement

Usable Frame: SF-20·60
