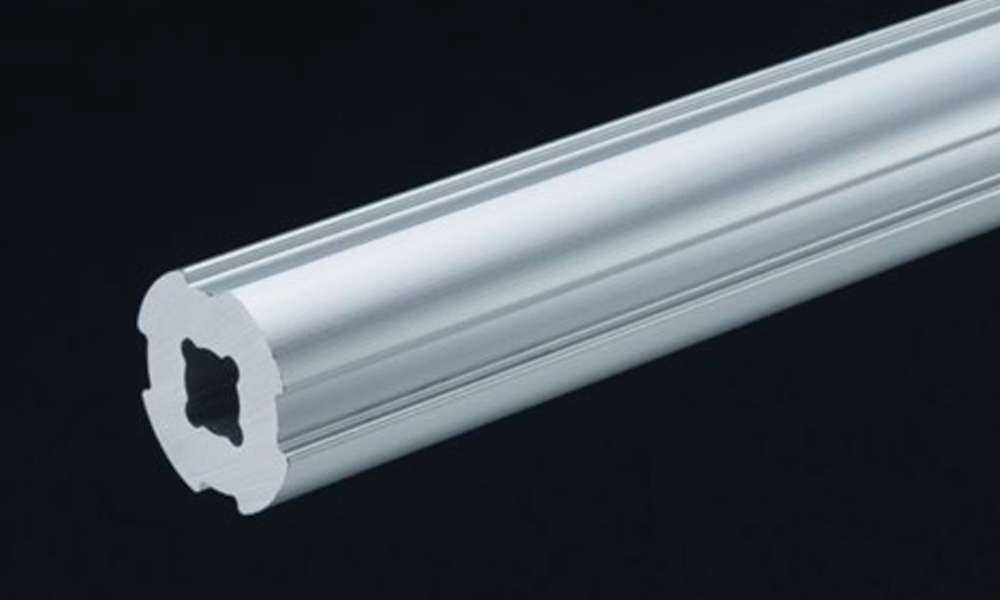

Green Frame S Hard

Product Type

Green Frame S Hard L=100~4000 mm

Item No. : GFF-404

STP SOLID DXF

Technical Data >>

Name: Green Frame S Hard L=100~4000 mm
L (mm): 100~4000 mm
Material: Aluminum Extrude
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=0.51 x 104 mm4
ly=0.51 x 104 mm4
Section Coefficient
Zx=0.54 x 103 mm3
Zy=0.54 x 103 mm3
Mass Unit: Weight 0.56 kg/m
Environment: RoHS10 Compliant

Detail Product Other

- High-strength S size frame
- M8 Tap can be processed at the end face (certain adjusters and foot components can be attached easily)

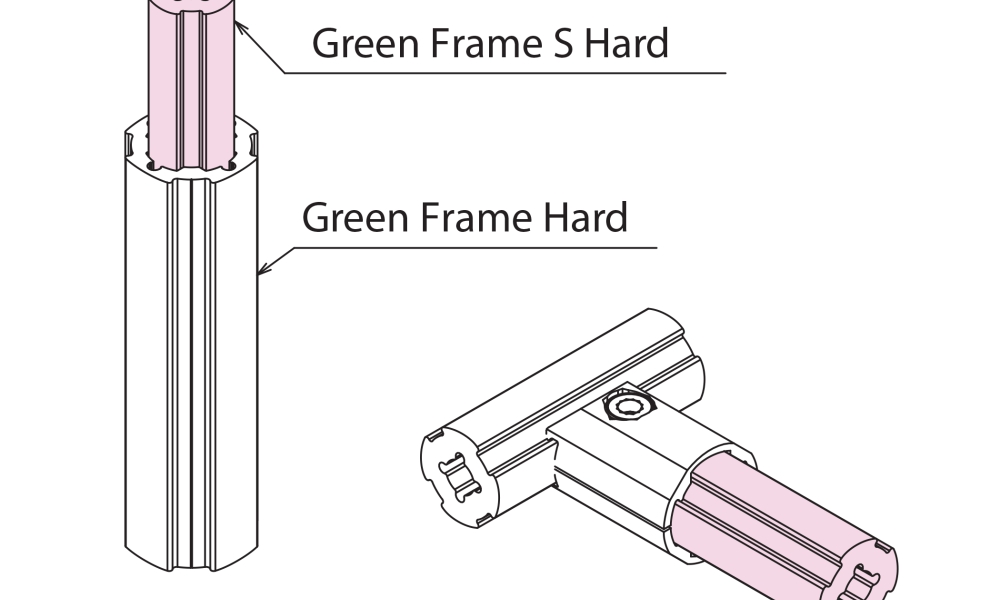

- Compatible Frame Cap: GFS Hard Inner Cap (GFA-408)
