Green Frame P100

Product Type

Green Frame P100 L=100~4000 mm
Item No. : GFF-001
STP SOLID DXF
Name
Green Frame P100 L=100~4000 mm
L (mm)
100~4000 mm
Material
Aluminum Extrude
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
Section Secondary Moment
lx=76.81 x 104 mm4
ly=2.32 x 104 mm4
Section Coefficient
Zx=12.0 x 103 mm3
Zy=1.65 x 103 m
Mass Unit
Mass Unit 1.13 kg.m
Environment
RoHS10 Compliant

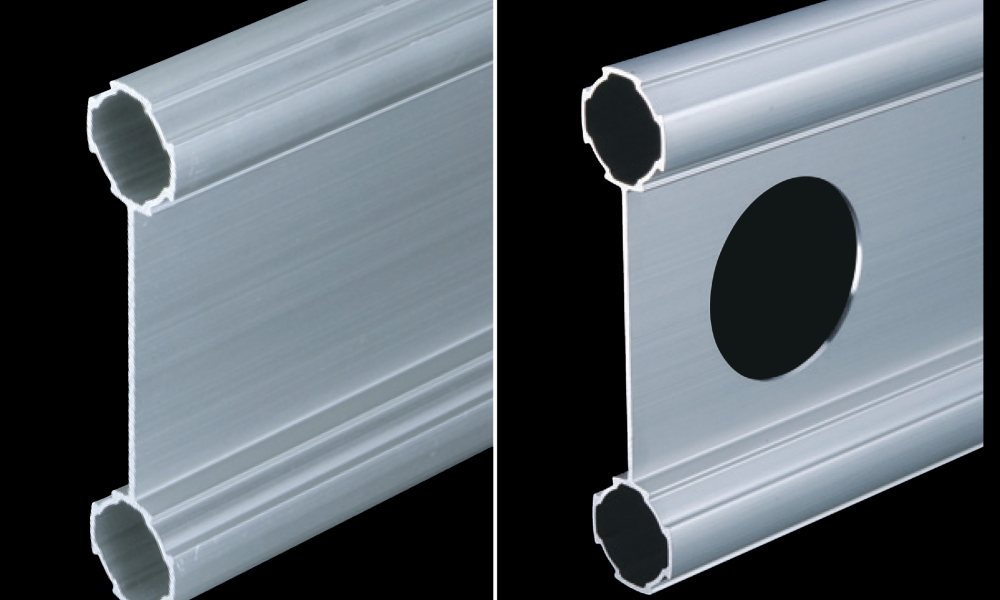

Green Frame P100 (Lightweight Type) L=300~4000 mm
Item No. : GFF-002
STP SOLID DXF
Name
Green Frame P100 (Lightweight Type) L=300~4000 mm
L (mm)
300~4000 mm
Material
Aluminum Extrude
Alumite Treatment
Geometrical Moment of Inertia
-
Section Modulus
Section Secondary Moment
lx=74.72 x 104 mm4
ly=2.31 x 104 mm4
Section Coefficient
Zx=11.68 x 103 mm3
Zy=1.65 x 103 mm3
Mass Unit
Mass Unit 1.02 kg/m
Environment
RoHS10 Compliant

Detail Product Other

Left Pic.

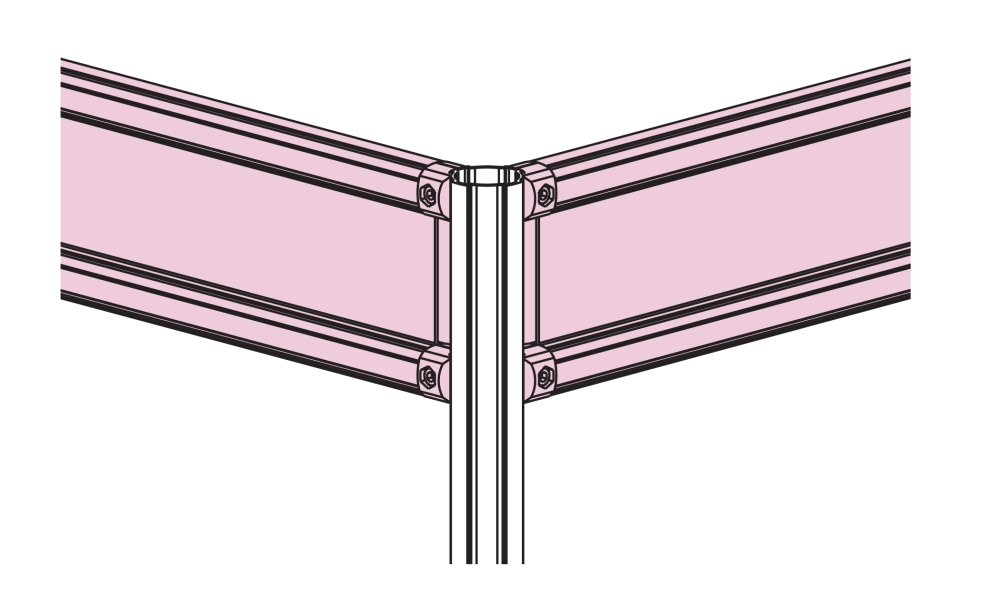

Capable of use as a beam for Large booth
