Power Unit

Product Type

Power Unit (Stroke:100, H Speed)

Item No. : XAK-P01

Technical Data >>

Name: Power Unit (Stroke:100, H Speed)
L (mm): -
Material: Body: Green frame G
Rod Frame: Green frame S
Motor: Stepping Motor
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: Weight: 1.1 kg
Load capacity
- Vertical: 1 kg
- Horizontal: 2 kg
Max Speed: 200mm/sec
Environment: -

Power Unit (Stroke:100, L Speed)

Item No. : XAK-P02

Technical Data >>

Name: Power Unit (Stroke:100, L Speed)
L (mm): -
Material: Body: Green frame G
Rod Frame: Green frame S
Motor: Stepping Motor
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: Weight: 1.1 kg
Load Capacity
- Vertical: 5 kg
- Horizontal: 10 kg
Max Speed: 50mm/sec
Environment: -

Power Unit (Stroke:200, H Speed)

Item No. : XAK-P03

Technical Data >>

Name: Power Unit (Stroke:200, H Speed)
L (mm): -
Material: Body: Green frame G
Rod Frame: Green frame S
Motor: Stepping Motor
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: Weight: 1.3 kg
Load Capacity
- Vertical: 1 kg
- Horizontal: 2 kg
Max Speed: 200mm/sec
Environment: -

Power Unit (Stroke:200, L Speed)

Item No. : XAK-P04

Technical Data >>

Name: Power Unit (Stroke:200, L Speed)
L (mm): -
Material: Body: Green frame G
Rod Frame: Green frame S
Motor: Stepping Motor
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: Weight: 1.3 kg
Load Capacity
- Vertical: 5 kg
- Horizontal: 10 kg
Max Speed: 50mm/sec
Environment: -

Power Unit (Stroke:300, H Speed)

Item No. : XAK-P05

Technical Data >>

Name: Power Unit (Stroke:300, H Speed)
L (mm): -
Material: Body: Green frame G
Rod Frame: Green frame S
Motor: Stepping Motor
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: Weight: 1.4 kg
Load Capacity
- Vertical: 1 kg
- Horizontal: 2 kg
Max Speed: 200mm/sec
Environment: -

Power Unit (Stroke:300, L Speed)

Item No. : XAK-P06

Technical Data >>

Name: Power Unit (Stroke:300, L Speed)
L (mm): -
Material: Body: Green frame G
Rod Frame: Green frame S
Motor: Stepping Motor
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: Weight: 1.4 kg
Load Capacity
- Vertical: 5 kg
- Horizontal: 10 kg
Max Speed: 50mm/sec
Environment: -

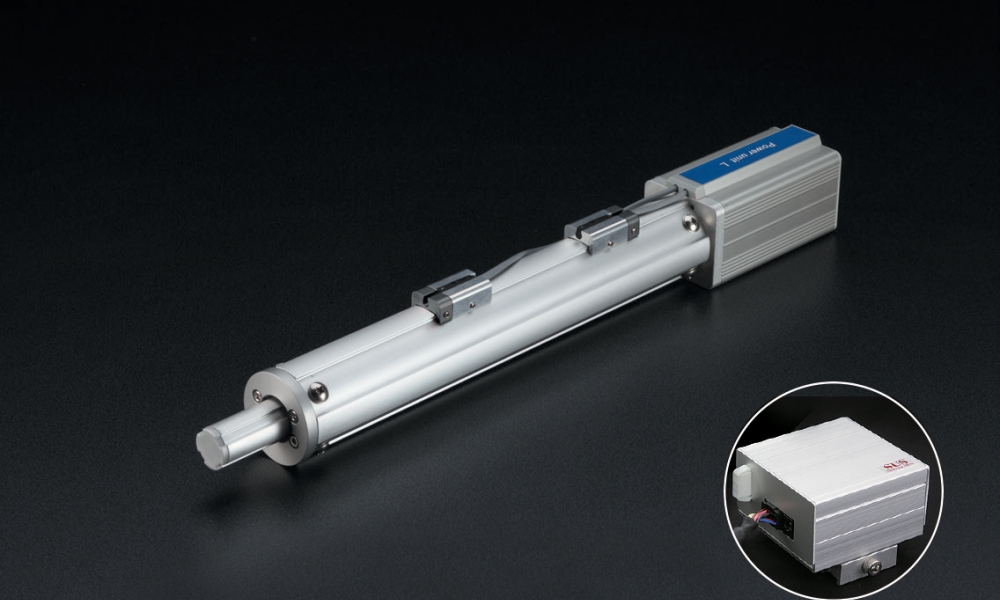

Body of power unit and the controller are set.
