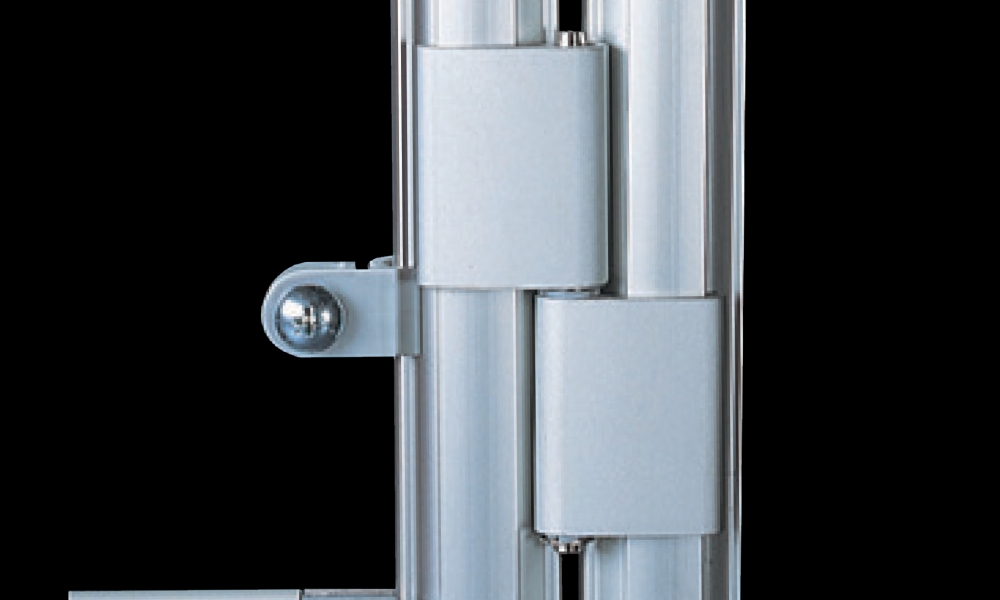

Hinge F-R

Product Type

Hinge F-R

Item No. : GFP-007

STP SOLID DXF

Technical Data >>

Name: Hinge F-R
L (mm): -
Material: Body : Aluminum Extrude
Pin : Stainless
Geometrical Moment of Inertia: -
Section Modulus: Product included
T Nut S (M6)x2
Hexagon socket low head cap screw M6x12 (Trivalent Chrome Plate)x2
Mass Unit: 144 g
Environment: RoHS Compliant

Detail Product Other

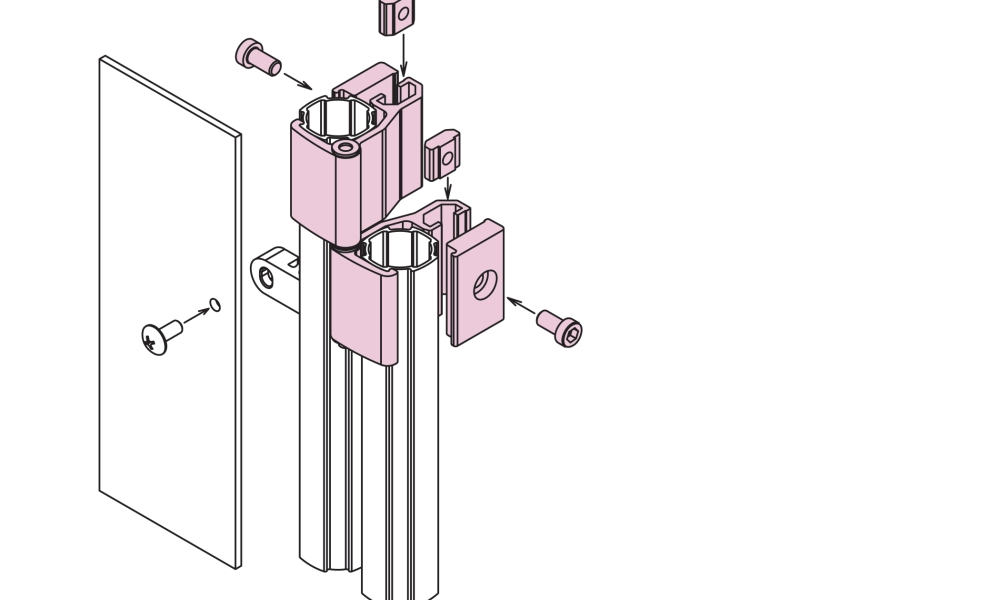

- This hinge is used in Frame + Door Frame
- This drawing is L (for open from the left) R (for open from the right) becomes opposite side
