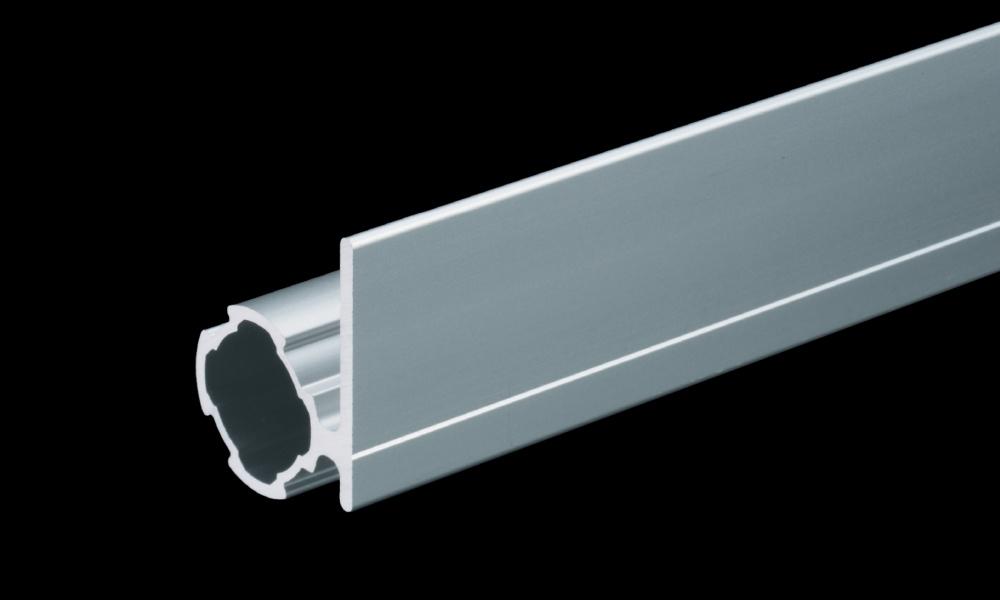

Green Frame S F22

Product Type

Green Frame S F22 L=100~4000 mm

Item No. : GFF-403

STP SOLID DXF

Technical Data >>

Name: Green Frame S F22 L=100~4000 mm
L (mm): 100 ~ 4000 mm
Material: -
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=0.86 x 104 mm4
ly=0.81 x 104 mm4
Section Coefficient
Zx=0.69 x 103 mm3
Zy=0.52 x 103 mm3
Mass Unit: Weight 0.36 kg/m
Environment: RoHS Compliant

Detail Product Other

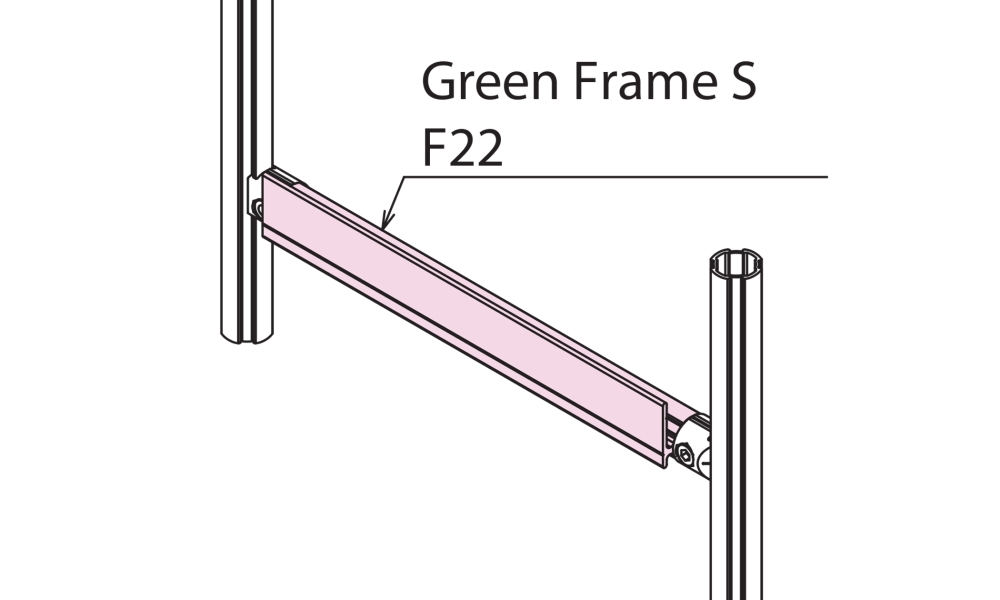

- Parts container can be attached to the ﬂat plate
- The ﬂat area can be used as a "Name Plate"
- Compatible Frame Cap: Inner Cap S (GFA-403)
