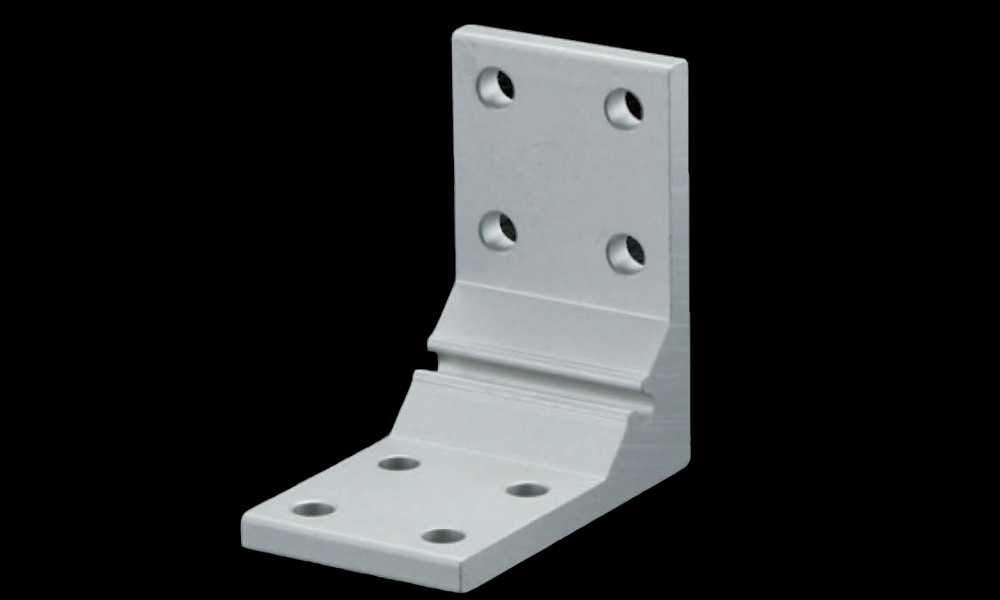

Hard Bracket SSW2040

Product Type

Item No. : SFJ-N15

STP SOLID DXF

Technical Data >>

Name: Hard Bracket SSW2040
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
(Special order: Black Alumite is also available.)
Perpendicular surface is machining finished.
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: 56 g
Environment: RoHS Compliant
Green Procurement

Hard Bracket SSW2040 With Tap

Item No. : SFJ-N15T

STP SOLID DXF

Technical Data >>

Name: Hard Bracket SSW2040 With Tap
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
(Special order: Black Alumite is also available.)
Perpendicular surface is machining finished.
Geometrical Moment of Inertia: -
Section Modulus: -
Mass Unit: 56 g
Environment: RoHS Compliant
Green Procurement

Hard Bracket SSW2040 Kit

Item No. : SFK-N15

STP SOLID DXF

Technical Data >>

Name: Hard Bracket SSW2040 Kit
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
(Special order: Black Alumite is also available.)
Perpendicular surface is machining finished.
Geometrical Moment of Inertia: -
Section Modulus: Hard Bracket SSW2040 x1
Hexagon Socket Bolt (M5x10) x8
T Nut SS (M5) x8
Mass Unit: 56 g
Environment: RoHS Compliant
Green Procurement

Hard Bracket SSW2040 With Tap Kit (Stainless)

Item No. : SFK-N15P

STP SOLID DXF

Technical Data >>

Name: Hard Bracket SSW2040 With Tap Kit (Stainless)
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
(Special order: Black Alumite is also available.)
Perpendicular surface is machining finished.
Bolt and Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Hard Bracket SSW2040 with Tap x1
Hexagon Socket Bolt (M5x10) x8
T Nut SS (M5) x8
Mass Unit: 56 g
Environment: RoHS Compliant
Green Procurement

Hard Bracket SSW2040 Kit (Stainless)

Item No. : SFK-N15S

STP SOLID DXF

Technical Data >>

Name: Hard Bracket SSW2040 Kit (Stainless)
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
(Special order: Black Alumite is also available.)
Perpendicular surface is machining finished.
Bolt and Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Hard Bracket SSW2040 x1
Hexagon Socket Bolt (M5x10) x8
T Nut SS (M5) x8
Mass Unit: 56 g
Environment: RoHS Compliant
Green Procurement

Hard Bracket SSW2040 With Tap Kit

Item No. : SFK-N15T

STP SOLID DXF

Technical Data >>

Name: Hard Bracket SSW2040 With Tap Kit
L (mm): -
Material: Aluminium Alloy
Alumite Treatment
(Special order: Black Alumite is also available.)
Perpendicular surface is machining finished.
Geometrical Moment of Inertia: -
Section Modulus: Hard Bracket SSW2040 with Tap x1
Hexagon Socket Bolt (M5x10) x8
T Nut SS (M5) x8
Mass Unit: 56 g
Environment: RoHS Compliant
Green Procurement

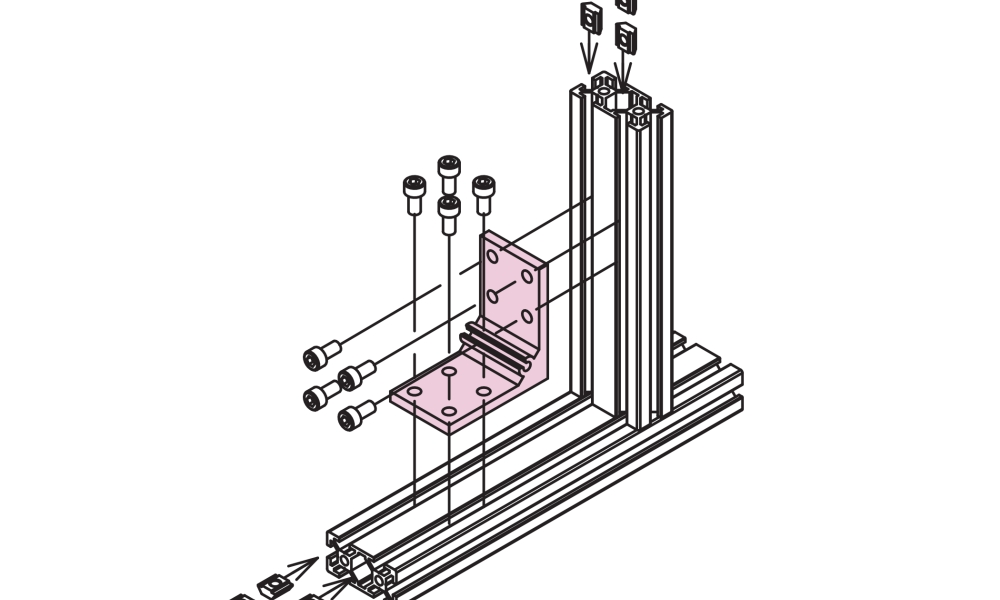

Usable Frame: SF-20·40/ SF-40·40·2S/ SF-40·60·SS/ SF-20·40·40 (1F)
