Catch for Panel Door

Product Type

Item No. : GFQ-003

STP SOLID DXF

Technical Data >>

Name: Catch for Panel Door
L (mm): -
Material: Install area : Aluminum Extrude
Magnet : Ferrite
Housing : Stainless
Geometrical Moment of Inertia: -
Section Modulus: Product included
Connector Piece Lx1
Part Holder L66x1
Magnet Catch Jx1
T Nut S (M6)x1
T Nut S (M4)x2
Small Cross Recessed Flat Head Screw M3x10 x1
Hexagon Nut M3x1
Truss Screw M4x10 x2
Hexagon Socket Low Head Cap Screw M6x12 x1
Mass Unit: 130 g
Environment: RoHS10 Compliant

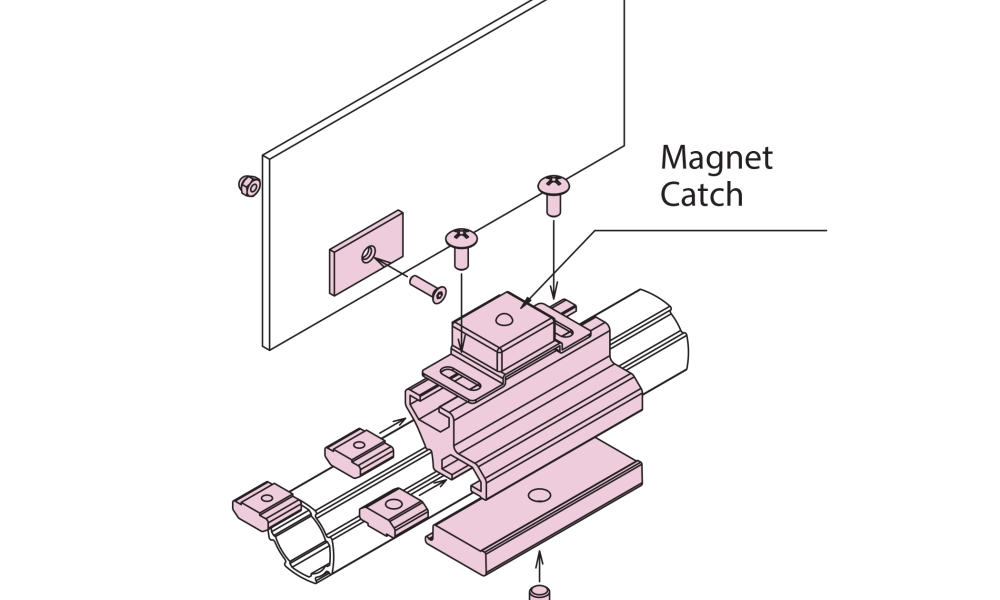

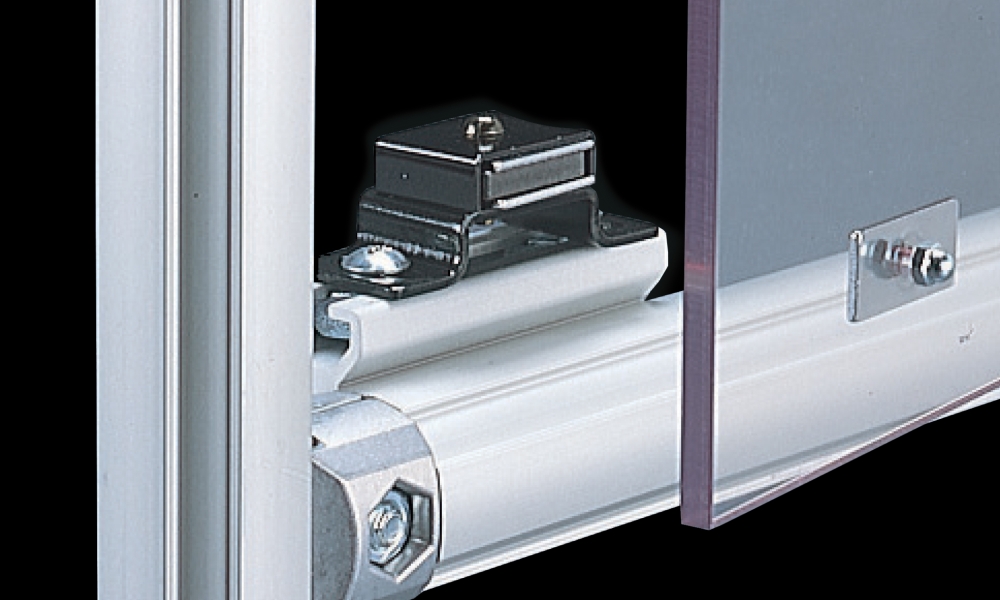

- Magnet Catch installation Kit for Resin Door Panel
- Magnet suction force 14.7N
