Green Frame DIN

Product Type

Green Frame DIN L=100~4000 mm

Item No. : GFF-031

STP SOLID DXF

Technical Data >>

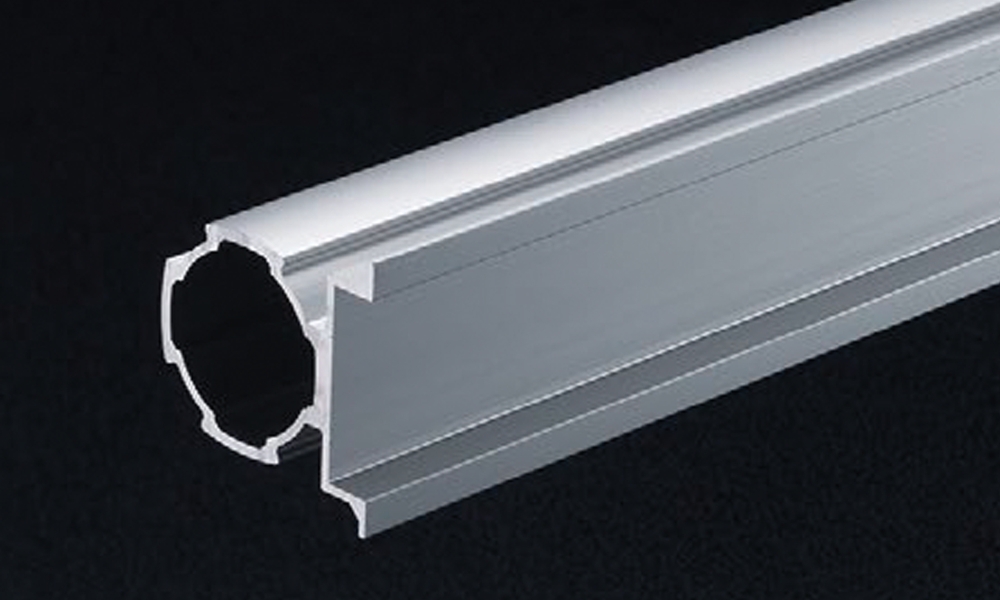

Name: Green Frame DIN L=100~4000 mm
L (mm): 100 ~ 4000
Material: Aluminum Extrude
Alumite Treatment
Geometrical Moment of Inertia: lx=2.36 x 104 mm4
ly=1.88 x 104 mm4
Section Modulus: Section Secondary Moment
lx=2.36 x 104 mm4
ly=1.88 x 104 mm4
Section Coefficient
Zx=1.35 x 103 mm3
Zy=0.98 x 103 mm3
Mass Unit: Mass Unit 0.53 kg/m
Environment: RoHS10 Compliant

Detail Product Other

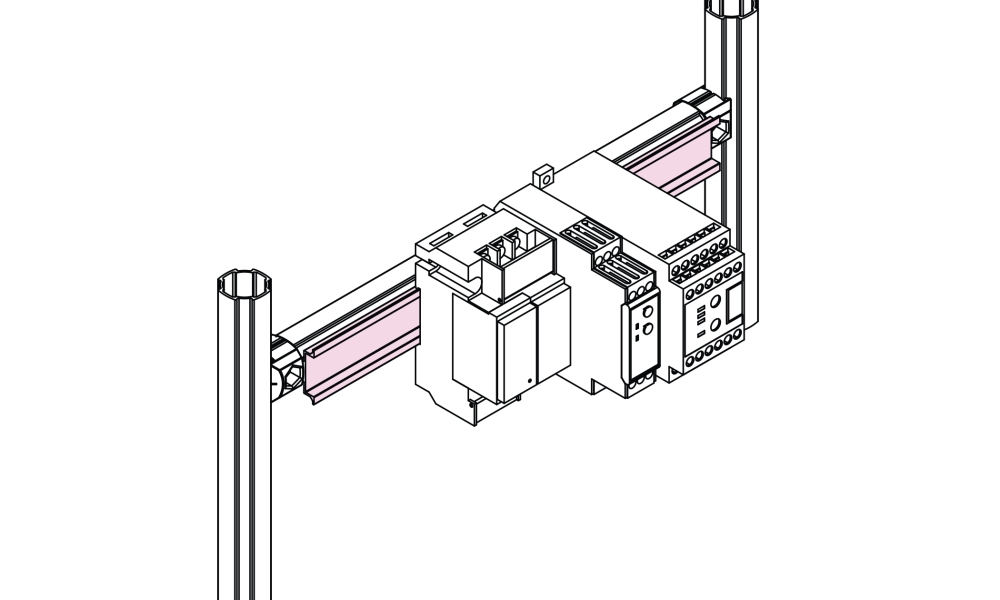

DIN rail is attached to Green Frame
- Easy to attach devices to the DIN rail
