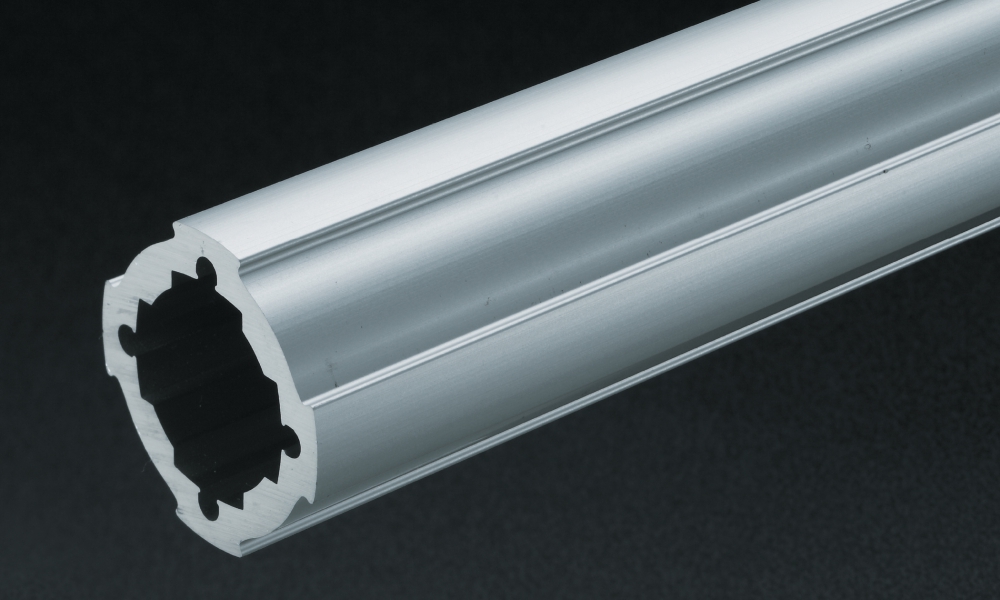

Green Frame G Hard

Product Type

Green Frame G Hard L=100~4000 mm

Item No. : GFF-209

SOLID DXF

Technical Data >>

Name: Green Frame G Hard L=100~4000 mm
L (mm): 100~4000 mm
Material: Aluminum Extrude
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=9.18 x 104 mm4
ly=9.18 x 104 mm4
Section Coefficient
Zx=4.27 x 103 mm3
Zy=4.27 x 103 mm3
Mass Unit: 1.57 kg/m
Environment: RoHS10 Compliant

Detail Product Other

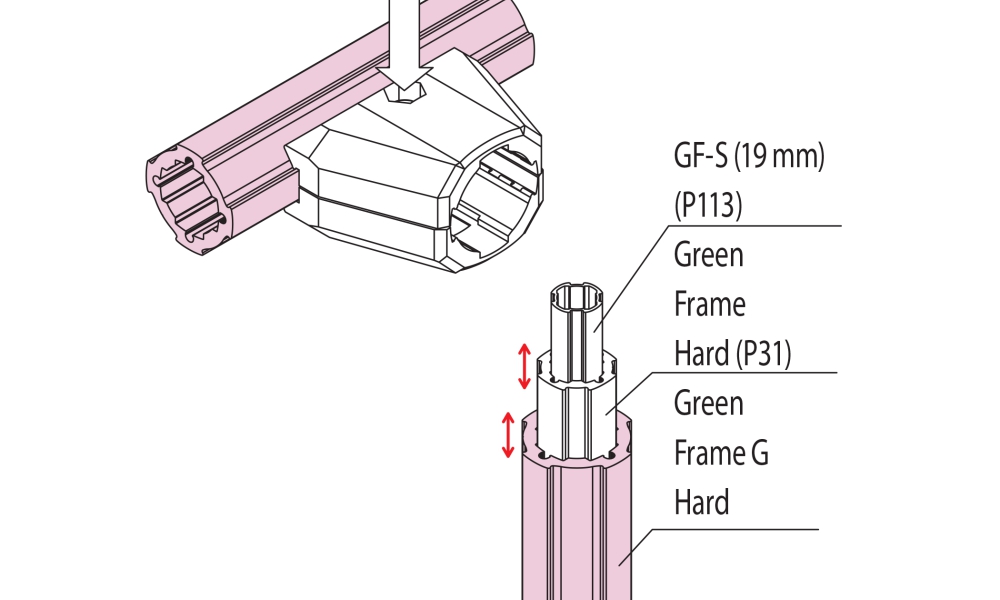

- This suitable for a frame on connector grip side when there is continuous impact to the joining point - Flex strength is 2 times of the 43 mm type - Insert GF-N (28 mm type) frame and slide to use - Compatible Frame Cap: GFG Hard Frame Inner Cap (GFA-426)
