Green Frame L Slot

Product Type

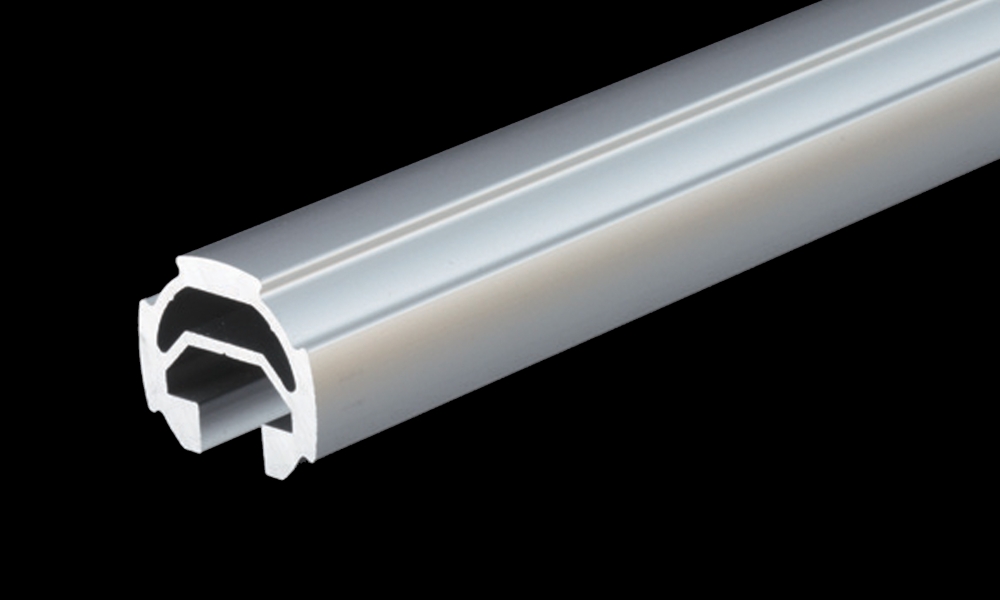

Green Frame L Slot L=100~4000 mm

Item No. : GFF-004

STP SOLID DXF

Technical Data >>

Name: Green Frame L Slot L=100~4000 mm
L (mm): 100 ~ 4000
Material: Aluminum Extrude
Alumite Treatment
Geometrical Moment of Inertia: Silver
Section Modulus: Section Secondary Moment
lx=1.19 x 104 mm4
ly=1.19 x 104 mm4
Section Coefficient
Zx=0.96 x 103 mm3
Zy=1.42 x 103 mm3
Mass Unit: Color Silver
Weight0 .68 kg/m
Environment: RoHS10 Compliant

Detail Product Other

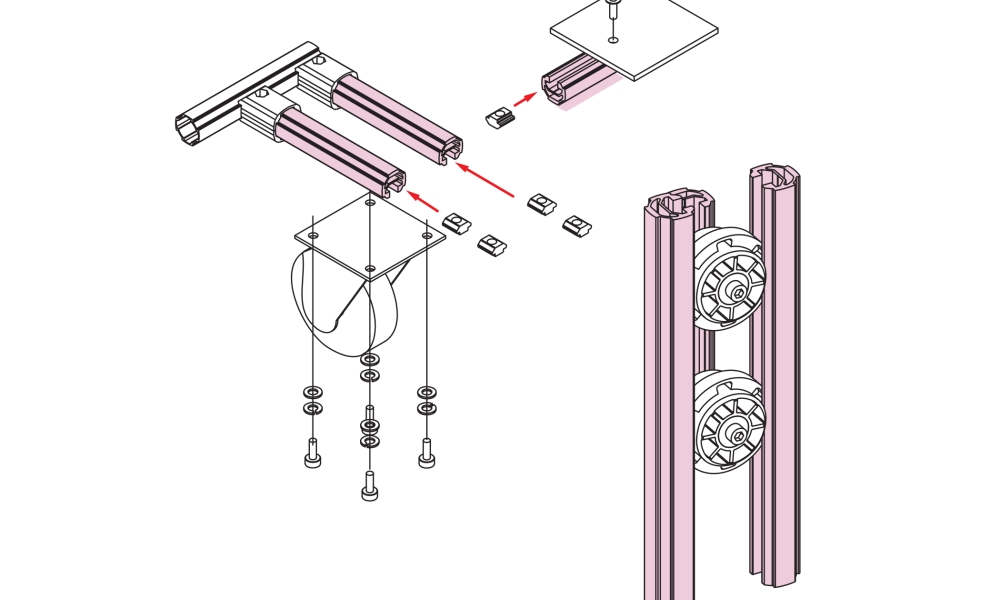

- Place ST Nut L into 10 mm width slot frame, then various part can be installed by using fixed screw.
- Slot can be used as a guide rail for slot roller.
