Green Frame GW

Product Type

Green Frame GW L=100~4000 mm

Item No. : GFF-207

SOLID DXF

Technical Data >>

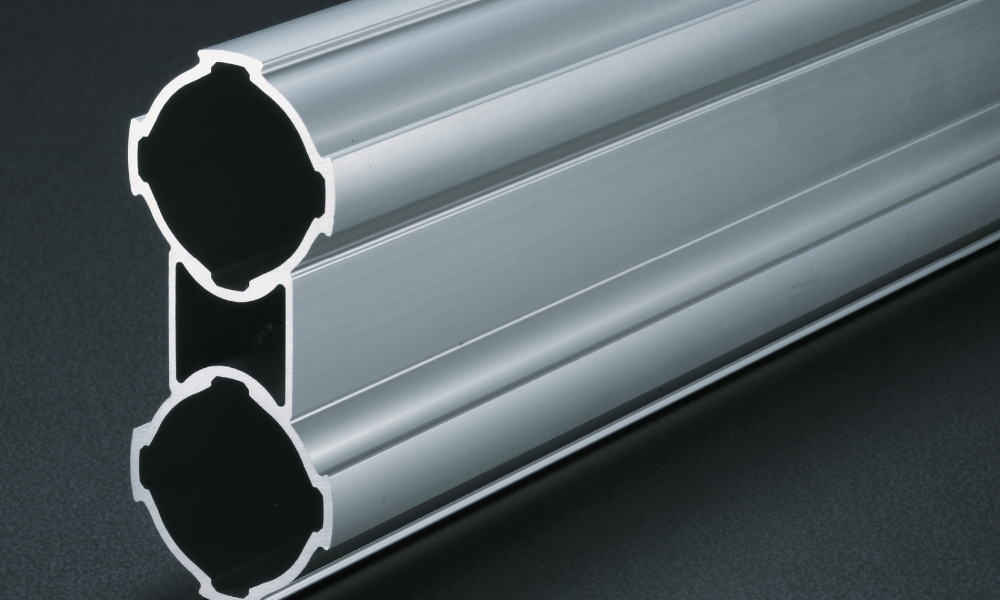

Name: Green Frame GW L=100~4000 mm
L (mm): 100~4000 mm
Material: Aluminum Extrude
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=52.42 x 104 mm4
ly=11.47 x 104 mm4
Section Coefficient
Zx=10.07 x 103 mm3
Zy=5.33 x 103 mm3
Mass Unit: Weight 1.74 kg/m
Environment: RoHS10 Compliant

Detail Product Other

- This frame is use at the area required strength

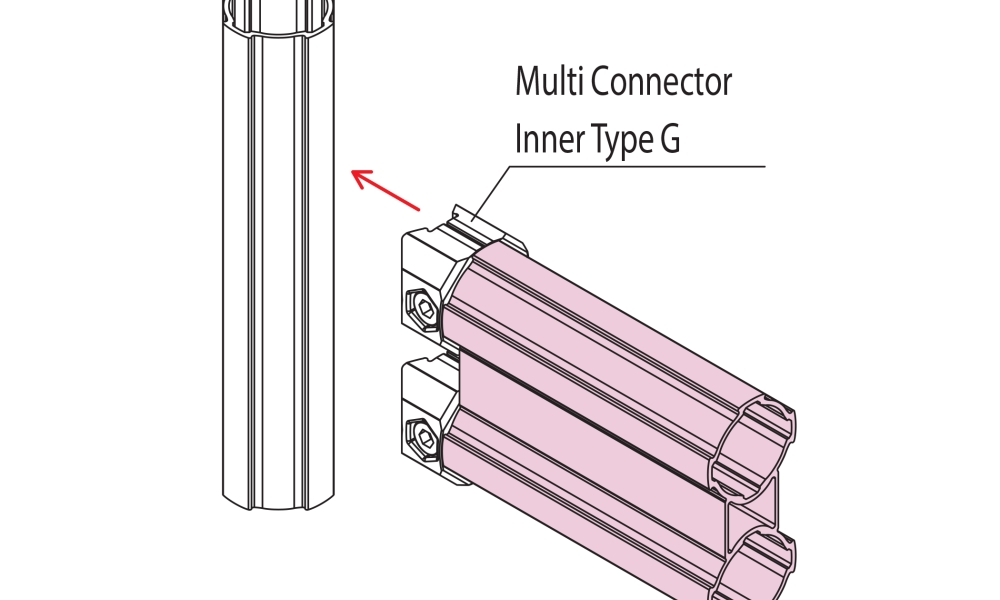

- Compatible Frame Cap: Inner cap G (GF A-402)
