Green Frame GL Slot

Product Type

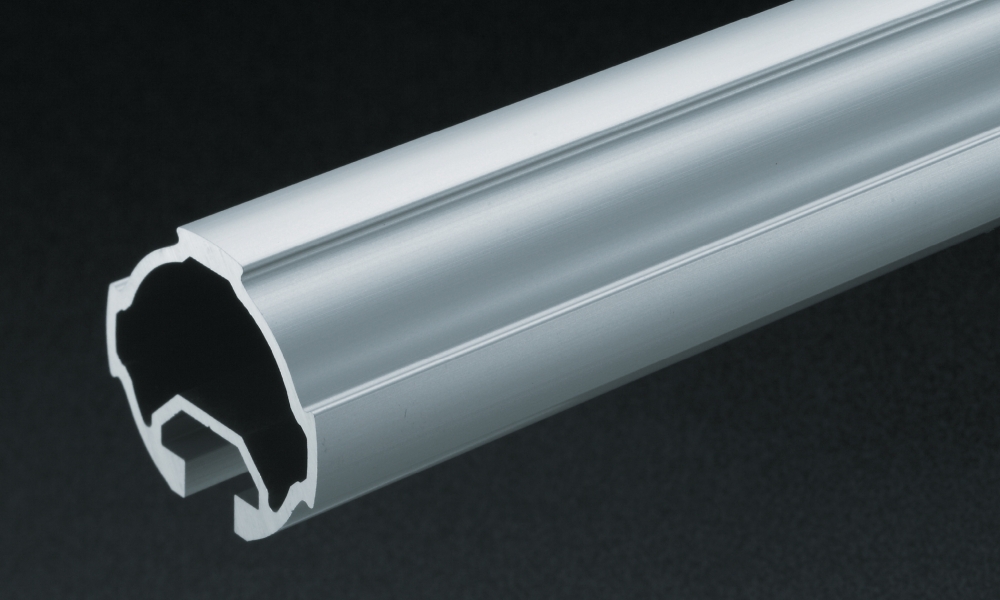

Green Frame G L Slot L=100~4000 mm

Item No. : GFF-205

SOLID DXF

Technical Data >>

Name: Green Frame G L Slot L=100~4000 mm
L (mm): 100~4000 mm
Material: Aluminum Extrude
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=5.79 x 104 mm4
ly=5.21 x 104 mm4
Section Coefficient
Zx=2.43 x 103 mm3
Zy=2.69 x 103 mm3
Mass Unit: Weight 0.98 kg/m
Environment: RoHS10 Compliant

Detail Product Other

- Frame with groove (L slot) size 43 mm

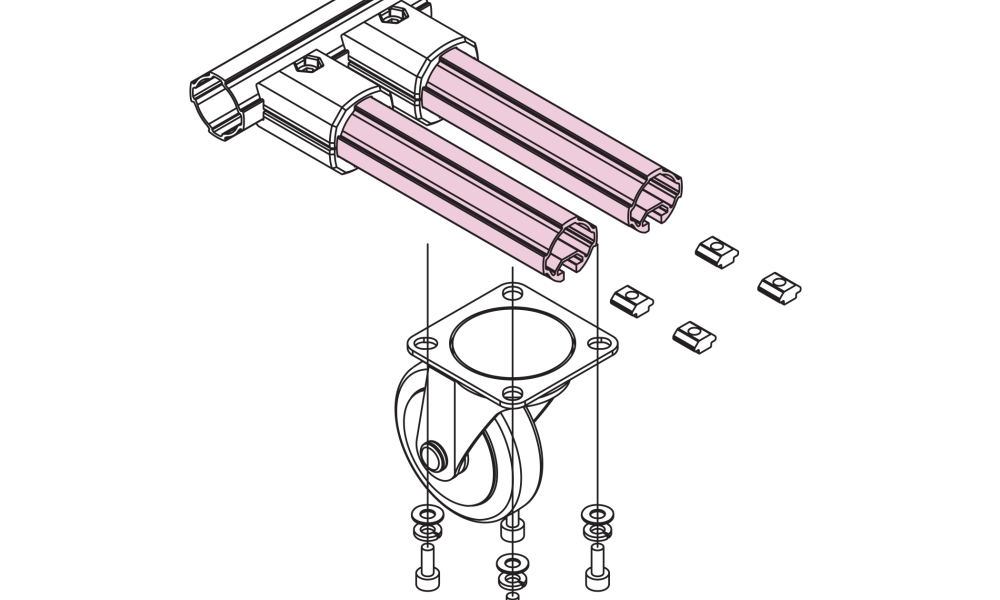

- Insert ST Nut L to install many type of part as a fixed piece
- Compatible Frame cap: GF-G L Slot Inner Cap (GFA-409)
- Dedicated ST Nut (with slide stopper cap): ST Nut L M8 (SFK-T11S), ST Nut L M5 (SFK-T09S), ST Nut L M6 (SFK-T10S), ST Nut L M4 (SFK-T08S)
