Green Frame Hard

Product Type

Green Frame Hard L=100~4000 mm

Item No. : GFF-019

SOLID DXF

Technical Data >>

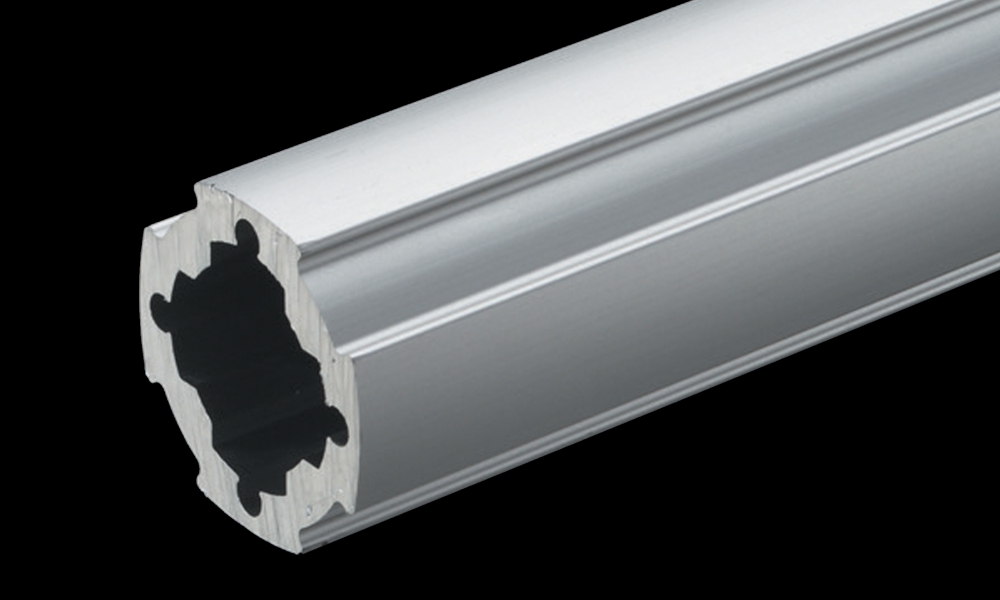

Name: Green Frame Hard L=100~4000 mm
L (mm): 100 ~ 4000
Material: Aluminum Extrude
Alumite Treatment
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=2.01 x 104 mm4
ly=2.01 x 104 mm4
Section Coefficient
Zx=1.44 x 103 mm3
Zy=1.44 x 103 mm3
Mass Unit: Mass Unit 0.76 kg/m
Environment: RoHS10 Compliant

Detail Product Other

- In case of continuous impact to the fastening point, fit to the frame on grip side of connector
- Flex Strenght about 1.7 time of 28 mm type

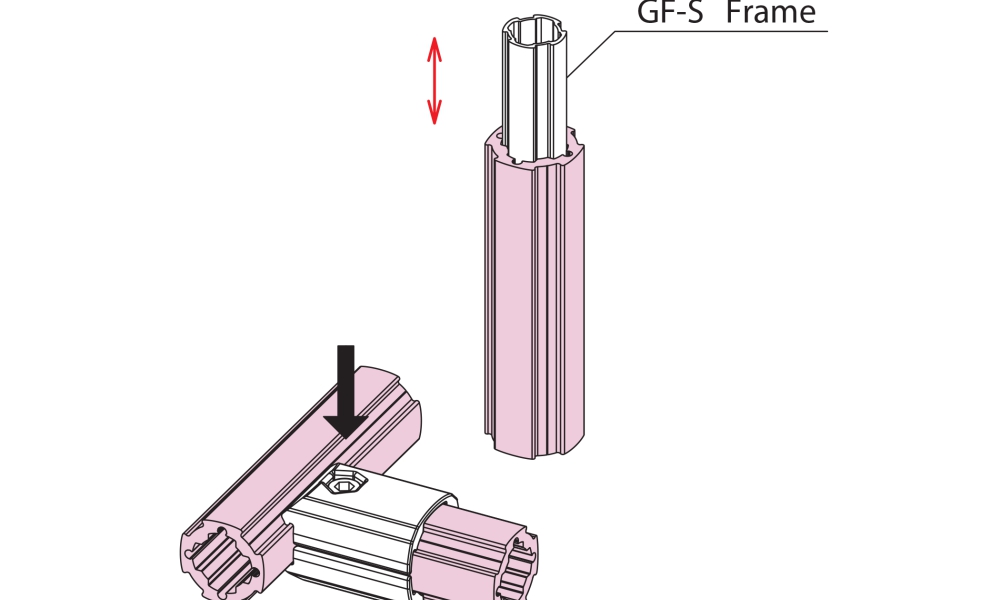

- GF-S (19 mm type) Frame Other way of use; Insert and then slide.
