Green Frame S SS Slot

Product Type

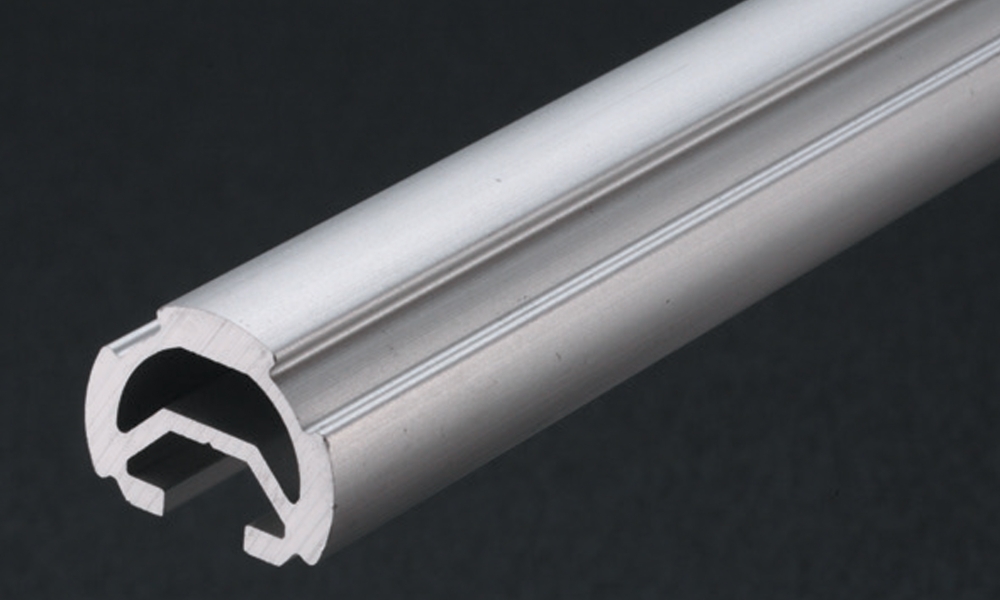

Green Frame S SS Slot L=100~4000 mm

Item No. : GFF-401

SOLID DXF

Technical Data >>

Name: Green Frame S SS Slot L=100~4000 mm
L (mm): 100~4000 mm
Material: Aluminum Extrude
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=0.198 x 104 mm4
ly=0.382 x 104 mm4
Section Coefficient
Zx=0.21 x 103 mm3
Zy=0.403 x 103 mm3
Mass Unit: Weight 0.30 kg/m
Environment: RoHS10 Compliant

Detail Product Other

- Frame with groove 19 mm (SS Slot).

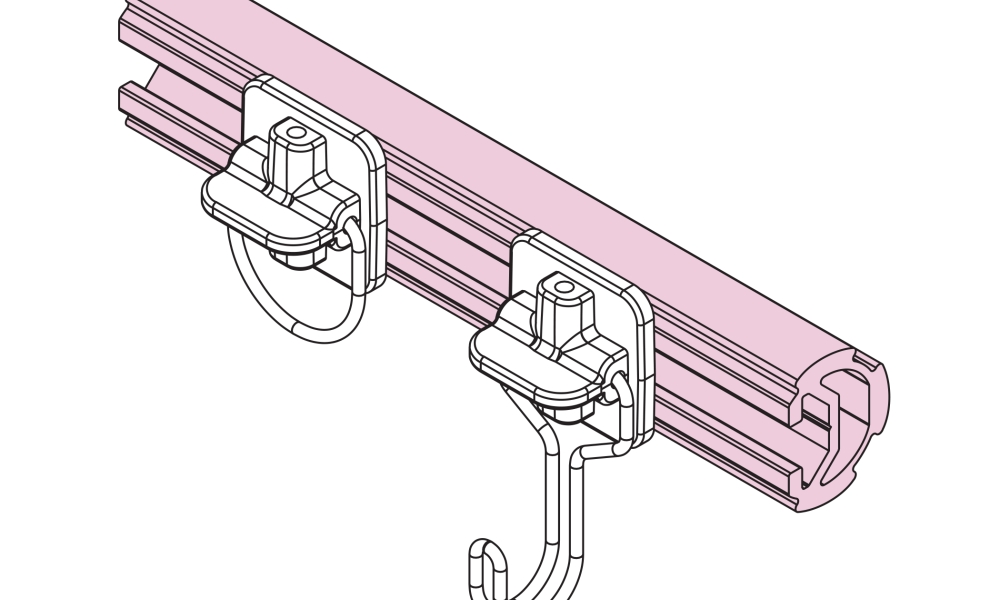

- Insert ST Nut SS to install various part as a fix piece.
- Compatible Frame Cap: SS slot Inner Cap (GFA-408)
