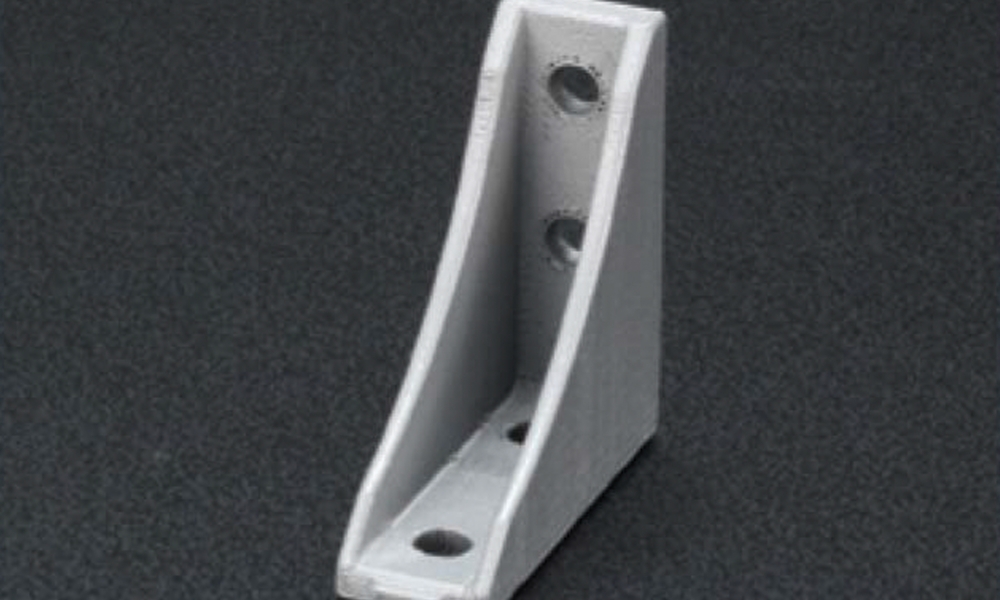

D Bracket SW

Product Type

D Bracket SW

Item No. : SFJ-024

STP SOLID DXF

Technical Data >>

D Bracket SW with Tap

Item No. : SFJ-024T

STP SOLID DXF

Technical Data >>

D Bracket SW Kit

Item No. : SFK-024

STP SOLID DXF

Technical Data >>

Name: D Bracket SW Kit
L (mm): -
Material: Aluminum Die-Cast (ADC 12)
With Rotation-Prevention Function
Geometrical Moment of Inertia: -
Section Modulus: Bracket SW x1
Hexagon Socket Bolt (M6 x12) x4
T Nut S (M6) x4
Mass Unit: Weight 40 g
Environment: RoHS Compliant

D Bracket SW with Tap Kit (Stainless)

Item No. : SFK-024P

STP SOLID DXF

Technical Data >>

Name: D Bracket SW with Tap Kit (Stainless)
L (mm): -
Material: Aluminum Die-Cast (ADC 12)
With Rotation-Prevention Function
Bolt and Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Bracket SW with Tap x1
Hexagon Socket Bolt (M6 x12) x4
T Nut S (M6) x4
Mass Unit: Weight 40 g
Environment: RoHS Compliant

D Bracket SW Kit (Stainless)

Item No. : SFK-024S

STP SOLID DXF

Technical Data >>

Name: D Bracket SW Kit (Stainless)
L (mm): -
Material: Aluminum Die-Cast (ADC 12)
With Rotation-Prevention Function
Bolt and Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Bracket SW x1
Hexagon Socket Bolt (M6 x12) x4
T Nut S (M6) x4
Mass Unit: Weight 40 g
Environment: RoHS Compliant

D Bracket SW with Tap Kit

Item No. : SFK-024T

STP SOLID DXF

Technical Data >>

Name: D Bracket SW with Tap Kit
L (mm): -
Material: Aluminum Die-Cast (ADC 12)
With Rotation-Prevention Function
Geometrical Moment of Inertia: -
Section Modulus: Bracket SW with Tap x1
Hexagon Socket Bolt (M6 x12) x4
T Nut S (M6) x4
Mass Unit: Weight 40 g
Environment: RoHS Compliant

Compatible to all SF30 series (Groove Width 8mm)
