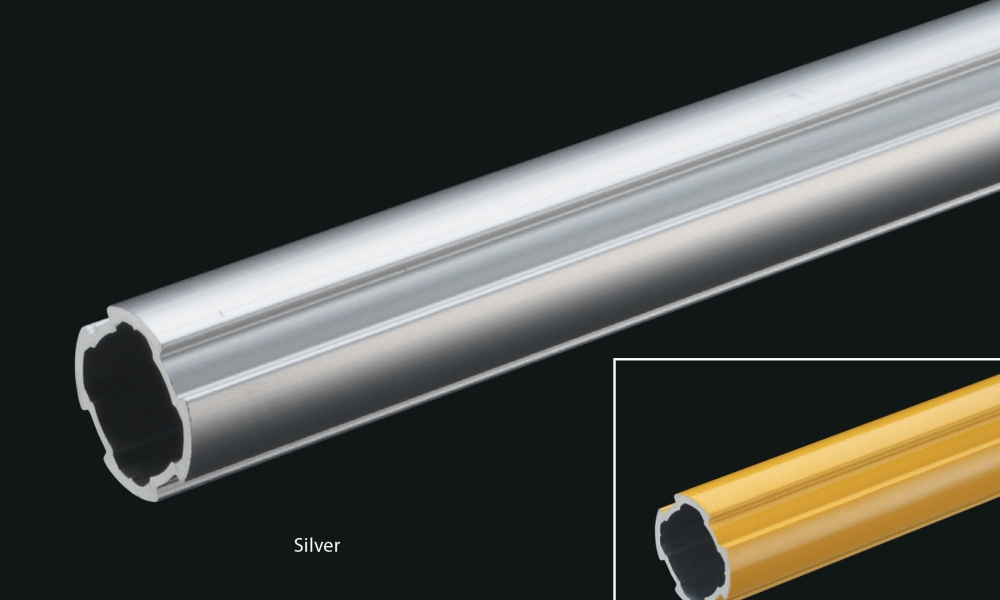

Green Frame S

Product Type

Green Frame S L=100~4000 mm

Item No. : GFF-400

STP SOLID DXF

Technical Data >>

Name: Green Frame S L=100~4000 mm
L (mm): 100~4000 mm
Material: Aluminum Extrude
Silver : Alumite Treatment
Geometrical Moment of Inertia: Silver
Section Modulus: Section Secondary Moment
lx=0.27 x 104 mm4
ly=0.27 x 104 mm4
Section Coefficient
Zx=0.28 x 103 mm3
Zy=0.28 x 103 mm3
Mass Unit: Color Silver
Weight0.20 kg/m
Environment: RoHS10 Compliant

Green Frame S Yellow L=100~4000 mm

Item No. : GFF-400Y

STP SOLID DXF

Technical Data >>

Name: Green Frame S Yellow L=100~4000 mm
L (mm): 100~4000 mm
Material: Aluminum Extrude
Yellow : Paint (Munsell 2.5Y8/3 Substaintial)
Geometrical Moment of Inertia: Yellow
Section Modulus: Section Secondary Moment
lx=0.27 x 104 mm4
ly=0.27 x 104 mm4
Section Coefficient
Zx=0.28 x 103 mm3
Zy=0.28 x 103 mm3
Mass Unit: Color Yellow
Weight0. 20 kg/m
Environment: RoHS10 Compliant

Green Frame S L=4000 mmx5 pcs.

Item No. : GFK-F12

STP SOLID DXF

Technical Data >>

Name: Green Frame S L=4000 mmx5 pcs.
L (mm): 4000 mm x 5 pcs
Material: Aluminum Extrude
Silver : Alumite Treatment
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=0.27 x 104 mm4
ly=0.27 x 104 mm4
Section Coefficient
Zx=0.28 x 103 mm3
Zy=0.28 x 103 mm3
Mass Unit: Weight0.20 kg/m
Environment: RoHS10 Compliant

Green Frame S L=1000 mmx5 pcs.

Item No. : GFK-F13

STP SOLID DXF

Technical Data >>

Name: Green Frame S L=1000 mmx5 pcs.
L (mm): 1000 mm x 5 pcs
Material: Aluminum Extrude
Silver : Alumite Treatment
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=0.27 x 104 mm4
ly=0.27 x 104 mm4
Section Coefficient
Zx=0.28 x 103 mm3
Zy=0.28 x 103 mm3
Mass Unit: Weight0.20 kg/m
Environment: RoHS10 Compliant

Green Frame S L=2000 mmx5 pcs.

Item No. : GFK-F14

STP SOLID DXF

Technical Data >>

Name: Green Frame S L=2000 mmx5 pcs.
L (mm): 2000 mm x 5 pcs
Material: Aluminum Extrude
Silver : Alumite Treatment
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=0.27 x 104 mm4
ly=0.27 x 104 mm4
Section Coefficient
Zx=0.28 x 103 mm3
Zy=0.28 x 103 mm3
Mass Unit: Weight 0.20 kg/m
Environment: RoHS10 Compliant

Green Frame S L=3000 mmx5 pcs.

Item No. : GFK-F15

STP SOLID DXF

Technical Data >>

Name: Green Frame S L=3000 mmx5 pcs.
L (mm): 3000 mm x 5 pcs
Material: Aluminum Extrude
Silver : Alumite Treatment
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=0.27 x 104 mm4
ly=0.27 x 104 mm4
Section Coefficient
Zx=0.28 x 103 mm3
Zy=0.28 x 103 mm3
Mass Unit: Weight 0.20 kg/m
Environment: RoHS10 Compliant

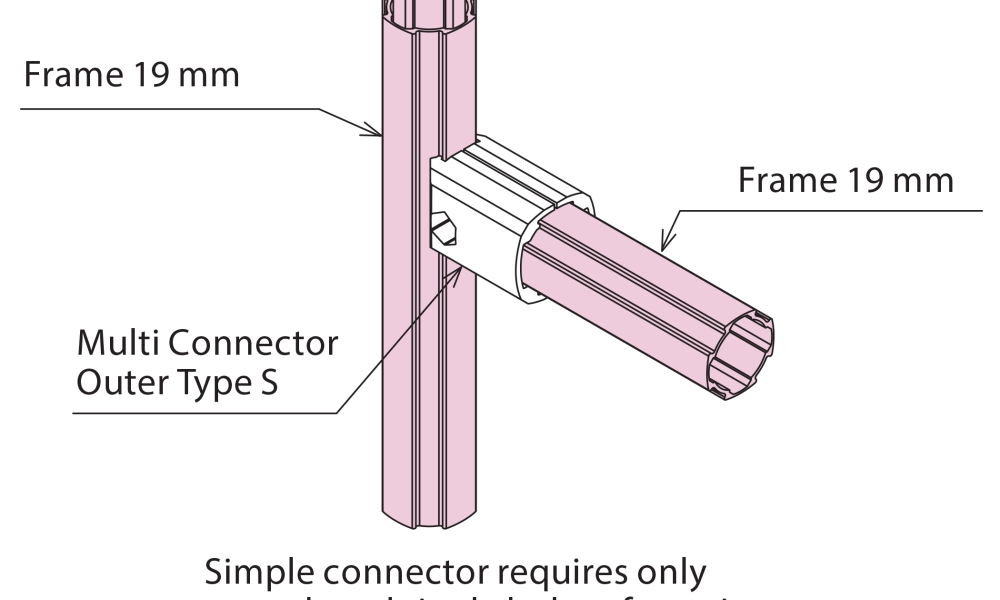

Frame size is 19 mm
