Hinge P-R

Product Type

Hinge P-R

Item No. : GFP-004

STP SOLID DXF

Technical Data >>

Name: Hinge P-R
L (mm): -
Material: Body : Aluminum Extrude
Pin : Stainless
Geometrical Moment of Inertia: -
Section Modulus: Product included
T Nut S (M5)x2
Truss Screw M5x12 (Uni Chrome)x2
Mass Unit: 123 g
Environment: RoHS Compliant

Detail Product Other

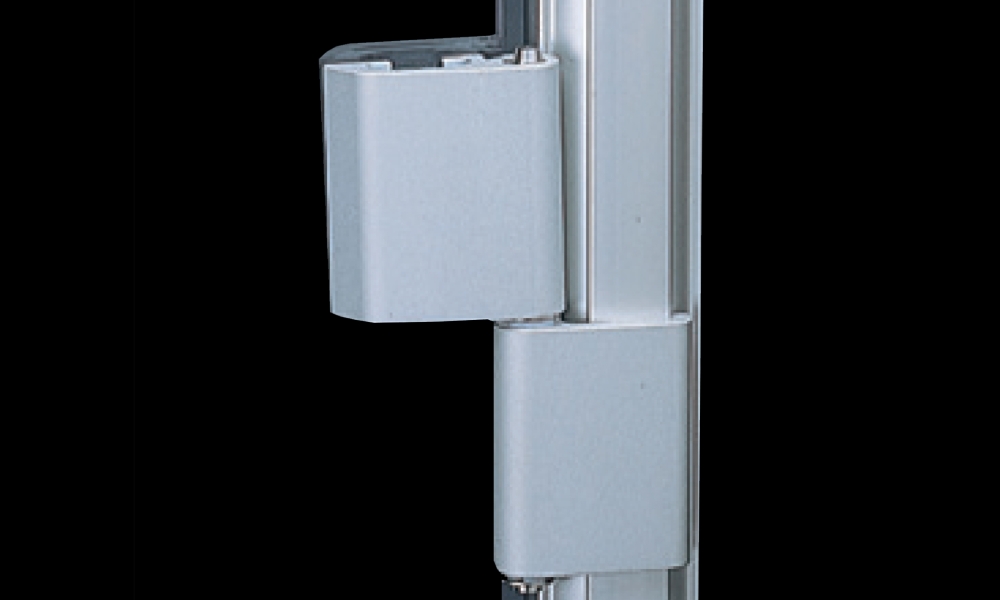

- This hinge is used in Resin Door Panel

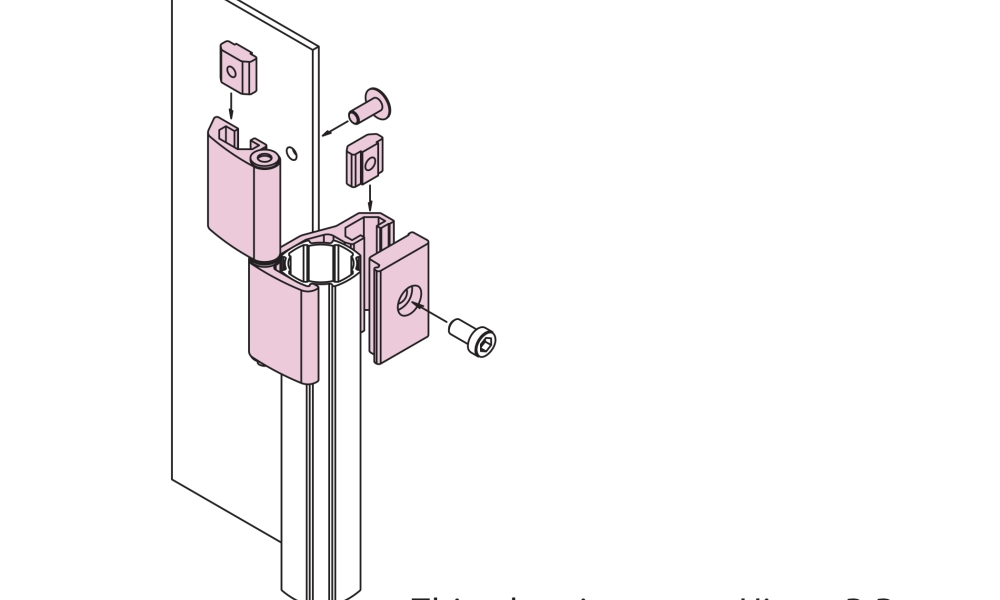

- This drawing is L (for open from the left) R (for open from the right) becomes opposite side
