Green Frame T

Product Type

Green Frame T L=100~4000 mm

Item No. : GFF-017

STP SOLID DXF

Technical Data >>

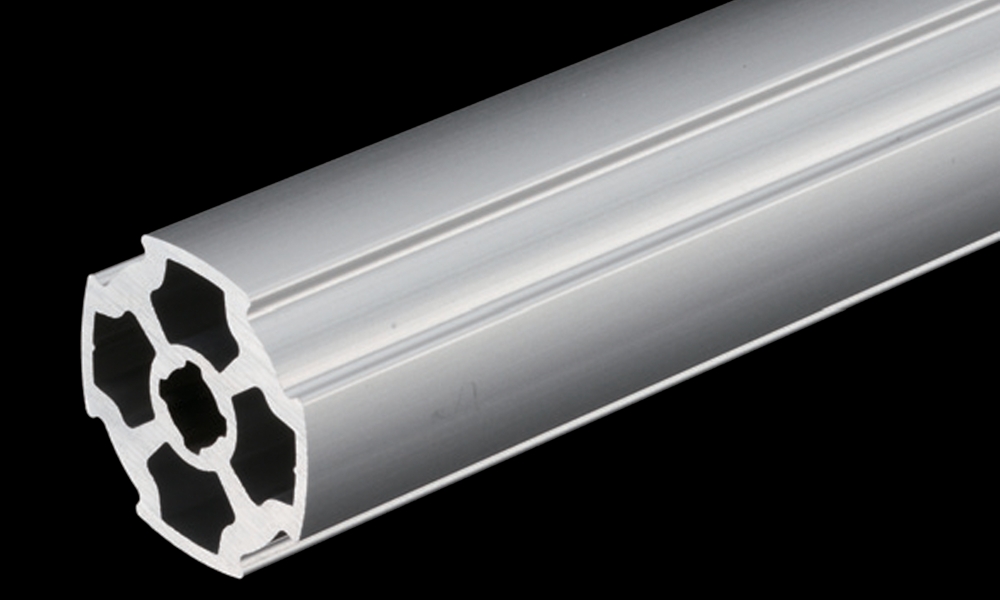

Name: Green Frame T L=100~4000 mm
L (mm): 100 ~ 4000
Material: Aluminum Extrude
Alumite Treatment
Geometrical Moment of Inertia: -
Section Modulus: Section Secondary Moment
lx=1.72 x 104 mm4
ly=1.72 x 104 mm4
Section Coefficient
Zx=1.23 x 103 mm3
Zy=1.23 x 103 mm3
Mass Unit: Weight 0.79 kg/m
Environment: RoHS10 Compliant

Detail Product Other

- Flex Strenght about 1.5 time of 28 mm type

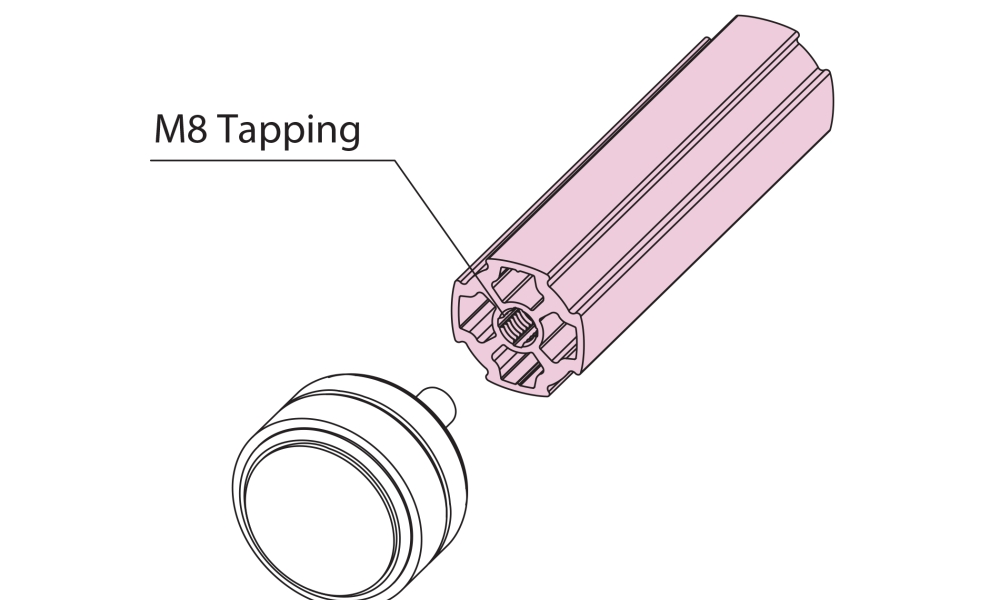

- Capable to have tapping at the end (M8)
