Green Frame F50

Product Type

Green Frame F50 L=100~4000 mm

Item No. : GFF-005

STP SOLID DXF

Technical Data >>

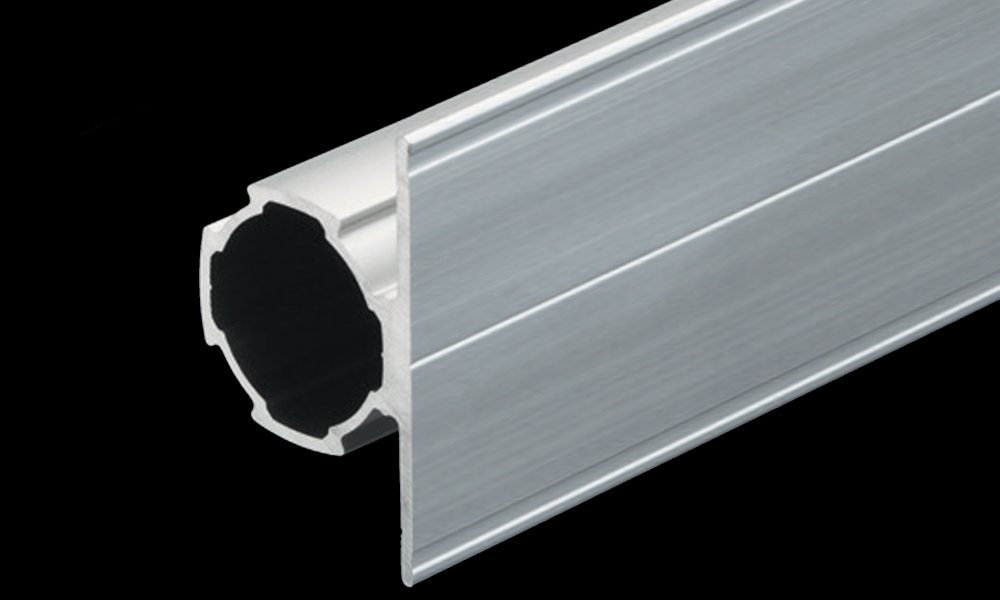

Name: Green Frame F50 L=100~4000 mm
L (mm): 100 ~ 4000
Material: Aluminum Extrude
Alumite Treatment
Geometrical Moment of Inertia: -
Section Modulus: lx=3.04 x 104 mm4
ly=2.56 x 104 mm4
Zx=1.22 x 103 mm3
Zy=1.24 x 103 mm3
Mass Unit: Mass Unit 0.65 kg/m
Environment: RoHS10 Compliant

Detail Product Other

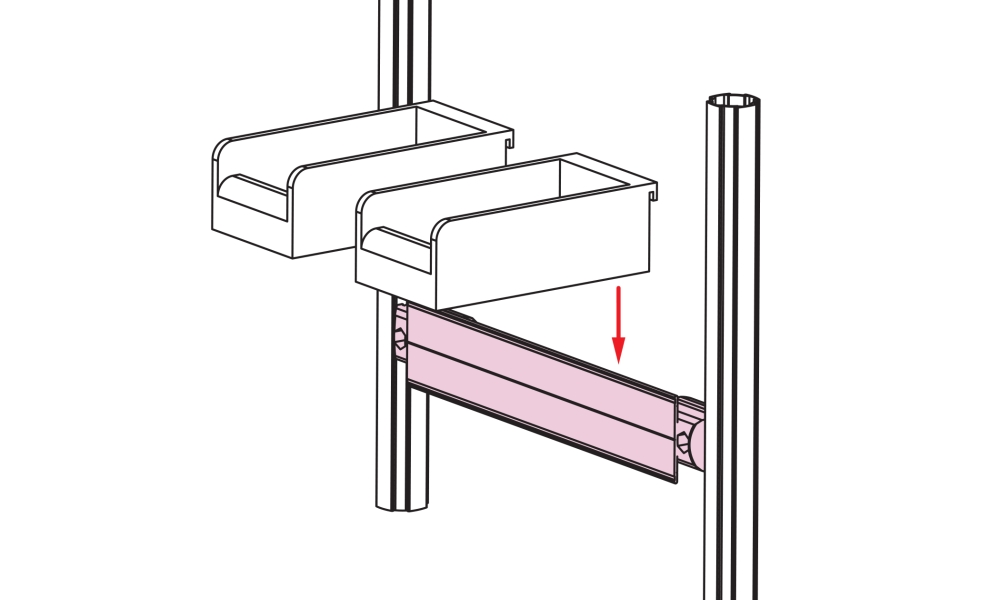

On the flat area is capable to install part container or use as a name plate.
